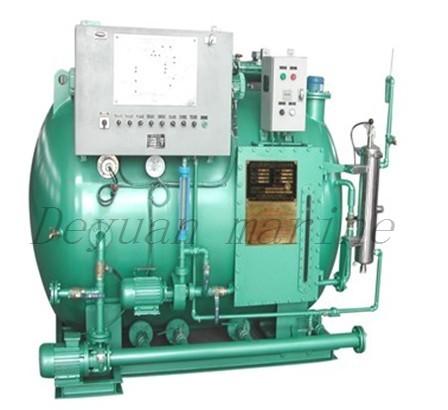

Marine Sewage Water Treatment Plants
Marine Sewage Water Treatment Plants :
1. Sewage Water Treatment Plants capacity: 10~250person
2. standard: IMO MEPC159 (55) ,MARPOL 73/78
3. certificate : CCS, EC, BV, ABS
4. usage: ships &vessels
| Model | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | ||
| Load | Average load L/ d | 1190 | 1540 | 1890 | 2310 | 3080 | 3780 | 4480 | 6020 | 7700 | 11200 | |
| Peak load L/ h | 149 | 193 | 237 | 289 | 385 | 473 | 560 | 753 | 963 | 1400 | ||
| Organic load kgBOD 5/ d | 0.595 | 0.77 | 0.945 | 1.155 | 1.54 | 1.89 | 2.24 | 3.01 | 3.85 | 5.6 | ||
| Rated capacity (P) | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | ||
| Max capacity (P) | 17 | 22 | 27 | 33 | 44 | 54 | 64 | 86 | 110 | 160 | ||
| Electricity |
| |||||||||||
| Power (KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | 3.0 | ||
| External dimensions L*W*H (mm) | 550* 1400* 1600 | 1650* 1400* 1600 | 1850* 1500* 1635 | 1950* 1500* 1635 | 1800* 1700* 1900 | 1900* 1700 1950 | 2100* 1700* 2000 | 2500* 1900* 2150 | 2500* 1900* 2300 | 3150* 2400* 2300 | ||
| Weight | Dry weight (Kg)
| 1150 | 1200 | 1250 | 1350 | 1500 | 1750 | 1950 | 2150 | 2900 | 3800 | |
| Wet weight (Kg)
| 2600 | 2933 | 3210 | 3928 | 4689 | 5665 | 6486 | 8100 | 10400 | 14680 | ||
| Discharge standard | TSS35mg/ L, BOD525mg/ L, COD125mg/ L, Coli form100pcs/ 100ml, PH: 68.5 |
| ||||||||||
