Electric lifeboat winch

bargain

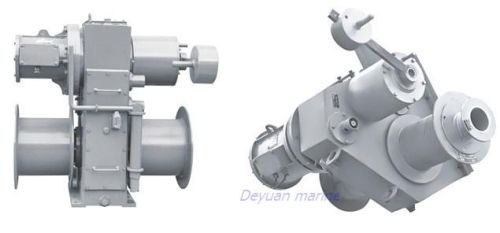

Electric lifeboat winch:

This Electric lifeboat winch is designed and built according to the latest regulations of SOLAS and international standards, which has two types: theleft and right one. The left one is shown here and the right one is made symmetrically. Decelerating gear box is used of N68 (GB443-84)

machine oil lubrication used, and the oil is agreement of 45liters, winch installed. Before the test, move the motor to check if the drum rotation correct or not (the rotation should be to the hoisting direction) ,or we should adjust the motor wiring.

Electric lifeboat winch Technical Parameter:

Type	Working load	Hoisting load (kn)	Hoisting speed	Descending rope speed	motor
DZB25	25 KN	20KN	≥10	90-110	5
D40S	40 KN	20 KN	≥10	80-90	5
D42S	42 KN	21 KN	≥10	80-1110	5.5
D50S	50 KN	28 KN	≥10	95-125	5.5
D63S	63 KN	30 KN	≥10	80-120	7.5
D100S	100 KN	70 KN	≥10	90-120	15
D125S	125 KN	70 KN	≥8	90-120	15
PW100S	100 KN	100 KN	≥5	50-60	11
PW138S	138 KN	138 KN	≥5	40-60	18.5
PW170S	170 KN	170 KN	≥5	40-60	22

More Electric lifeboat winch can be offered, pls contact us for more details
