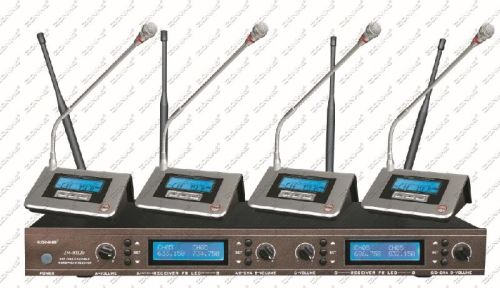

add to cartModel: ZH-912B (one set =1 receiver + 4 wireless transmitter)
Product description:
Using UHF ultra-high frequency band, lessinterference than traditional VHF band, and more reliable on transmission. Equippedwith Multi-channel frequency synthesis technology of DPLL digital phase-lockedloop, can provide more than 200 channels at 250 KHZ channel space within 50MHzfrequency band. It's convenient for Multiple sets of machines used at the sametime and easy to avoid all kinds of interference. Even if the frequency of emitterand receiver tuning wrong, you just need to press the button, then thetransmitter will automatically lock the frequency of receiver and adjustconsistently according to the advanced automatic frequency hopping technology. High-lowpower switching function, suitable for meeting places (high power emission) ,classrooms and KTV rooms (low power emission) . To save battery power. Equipped with transmitter andreceiver lock function to prevent from incorrect operation. Moreover, you canadjust the sensitivity as needed through the receiver sensitivity adjustment function to improve the capacity ofresisting disturbance and increase the receiving distance. Aexcellent LCD display make the working states more clear.
Technical Parameters:
system index | |
Frequency range | 740-790MHz |
Modulation range | Broadband FM |
Adjustable range | 50MHz |
Channel number | 200 |
Channel spacing | 250KHz |
Frequency stability | within ±0.005% |
Dynamic range | 100dB |
Max. frequency deviation | ±45KHz |
Audio response | 80Hz-18KHz (±3dB) |
PSACR | ) 105dB |
integrated distortion | ≦0.5% |
Operating temperature | -10℃-+40℃ |
receiver index | |
receiver mode | Secondary super heterodyne |
IF-FRE | First IF: 110MHz, second IF: 10.7MHz |
radio interface | BNC/ 50Ω |
Sensitivity | 12dBμV (80dB S/ N) |
Sensitivity adjustment range | 12-32 dBμV |
spur suppression | ≧75dB |
Max. power level | +10dBV |
transmitter index | |
Antenna program | 1/4 Wavelength whip antennae for Palin hanging type transmitter, Handheld microphone built-in spiral antenna |
Output power | High power: 30mW; low power: 3Mw |
Spurious suppression | -60dB |
Power supply | Two AA batteries |
Service time | 30mW: more than 10 hours, 3mW: more than 15 hours |
