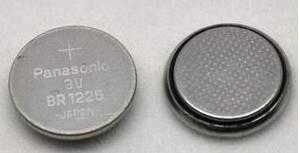

BR1225 ( Panasonic ) high temperature
Battery Type : Panasonic BR1225
Rated voltage : 3.0V
Rated capacity : 48mAh
Outer diameter : 12mm diameter height 2.5mm Weight : 0.8g
Continuous operating current : 0.03mA
Product certification CE, UL
Working temperature : -30 ~ + 80 ° C

Battery features:

High voltage, high energy density, long life, steady discharge, no leakage, durability

Applications:

Real-time clock, memory backup power supply, a variety of measuring instruments, electronic products and so on.

BR High Temperature Button Cell

Model No.

Nominal Voltage

(V)

Nominal Capacity (mAh)

Pulse

(mA)

Continuous (mA)

Low- Drain

(μA)

Diameter

(mm)

Height

(mm)

Approx. Weight

(g)

BR1216

3.0

25

5

0.03

1

12.5

1.60

0.6

BR1220

3.0

35

5

0.03

1

12.5

2.00

0.7

BR1225

3.0

48

5

0.03

1

12.5

2.50

0.8

BR1616

3.0

48

8

0.03

1

16.0

1.60

1.0

BR1632

3.0

120

8

0.03

1

16.0

3.20

1.5

BR2016

3.0

75

10

0.03

1

20.0

1.60

1.5

BR2020

3.0

100

10

0.03

2

20.0

2.00

2.0

BR2032
