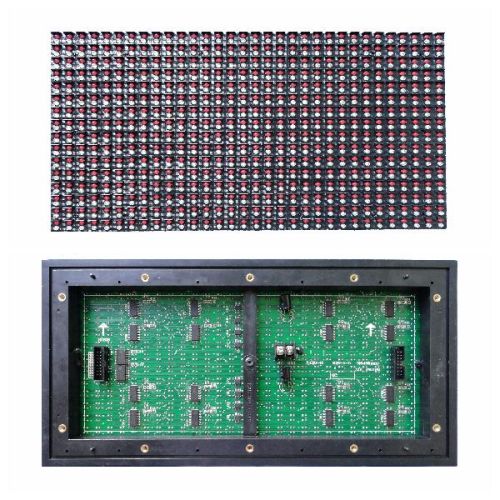

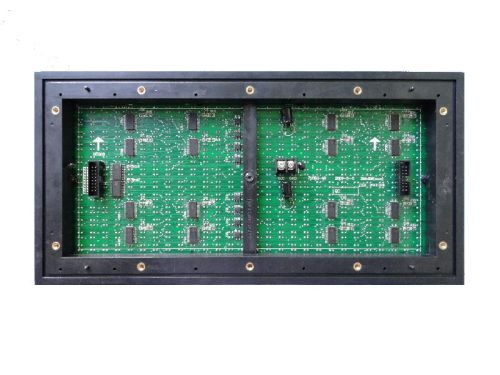

| P10 outdoor double color modules (P10 outdoor double color module) |
| Item (Item) | Unit (Unit) | Parameter (Parameter) |
| Pixel pitch (Pixel pitch) | mm | 10 |
| Density Physics (Physical density) | dots/ ㎡ | 10000 |
| Pixels (Pixel composing) | 1R1G |
| LED specification (Led specification) | DIP546 |
| LED parameters (Led parameter) | R: Λd: 625-630nm IV: 1.9-2.1v LV: 500-600mcd |
| G: Λd: 520-525nm IV: 3.0-3.4v LV: 1800-2000mcd |
| Driving (Driving way) | 1/4 scan (1/4Scan) |
| Horizontal field of view (Level vision) | ° | 100 |
| A single module size (Size of single module) | mm | 320*160 |
| A single module resolution (Prase of single module) | dot | 32*16 |
| A single module weight (Weight of single module) | Kg | 0.685 |
| Number of modules/square meter (Module QTY/㎡) | pcs | 19.5 |
| Module life (Module life) | 100,000 (One hundred thousand hours) |
| Control (Control mode) | Asynchronous or synchronous (Asynchronism or synchronism) |
| Gray scale/color (Grey scale/Colors) | 256 levels |
| White balance brightness (White balanced brightness) | ≥3500cd/ ㎡ |
| Brightness adjustment (Brightness adjusted by) | Software (control by software) |
| Average power consumption (Avg.power consumption) | ≤250/ ㎡ |
| Maximum power consumption (Max.power consumption) | ≤300/ ㎡ |
| Optimum viewing distance (Viewing distance) | M | 15m-30m |
| Display modes (Display mode) | 1024*768/800*600 |
| Operating voltage (Working voltage) | AC220V±5% |
| Ambient temperature (Operating temperature) | (-40℃-+80℃) |
| Pixel control rate (Pixel failure ratio) | (0.0002 |
