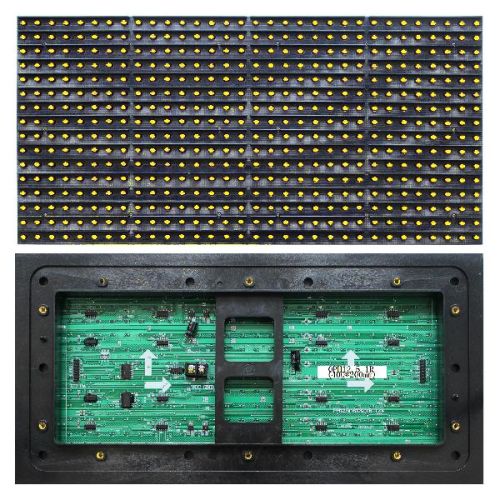

| Outdoor P12.5 yellow module (P12.5 outdoor yellow color module) |
| Item (Item) | Unit (Unit) | Parameter (Parameter) |
| Pixel pitch (Pixel pitch) | mm | 12.5 |
| Density Physics (Physical density) | dots/ ㎡ | 6400 |
| Pixels (Pixel composing) | 1Y |
| LED specification (Led specification) | DIP546 |
| LED parameters (Led parameter) | Λd: 585nm-590nm |
| LV: 600mcd-800mcd |
| VF: 1.9v-2.1v |
| Driving (Driving way) | 1/4 scan (1/4Scan) |
| Horizontal field of view (Level vision) | ° | 100 |
| A single module size (Size of single module) | mm | 400*200 |
| A single module resolution (Prase of single module) | dot | 32*16 |
| A single module weight (Weight of single module) | Kg | 0.726 |
| Number of modules/square meter (Module QTY/㎡) | pcs | 12.5 |
| Module life (Module life) | 100,000 (One hundred thousand hours) |
| Control (Control mode) | Asynchronous or synchronous (Asynchronism or synchronism) |
| Gray scale/color (Grey scale/Colors) | Yellow (Yellow) |
| White balance brightness (White balanced brightness) | ≥2000cd/ ㎡ |
| Brightness adjustment (Brightness adjusted by) | Software (control by software) |
| Average power consumption (Avg.power consumption) | ≤150/ ㎡ |
| Maximum power consumption (Max.power consumption) | ≤200/ ㎡ |
| Optimum viewing distance (Viewing distance) | M | 15m-50m |
| Display modes (Display mode) | 1024*768/800*600 |
| Operating voltage (Working voltage) | AC220V±5% |
| Ambient temperature (Operating temperature) | (-40℃-+80℃) |
| Pixel control rate (Pixel failure ratio) | (0.0002 |
