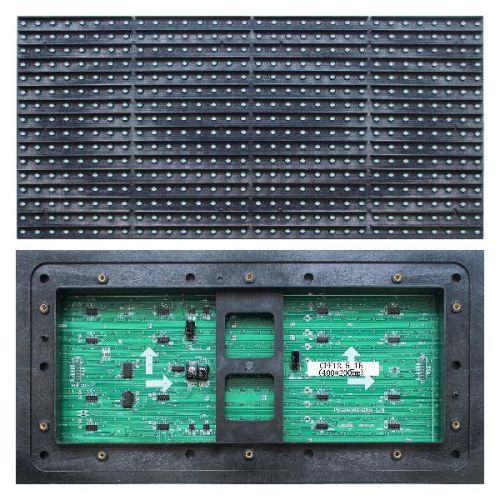

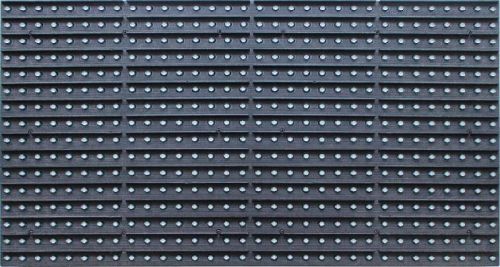

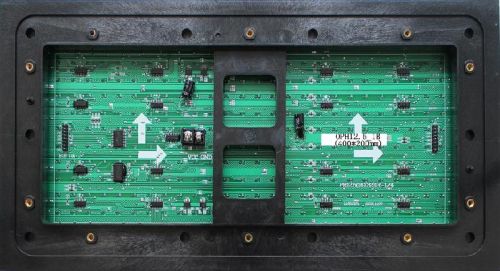

| P12.5 outdoor blue module (P12.5 outdoor blue color module) |
| Item (Item) | Unit (Unit) | Parameter (Parameter) |
| Pixel pitch (Pixel pitch) | mm | 12.5 |
| Physical density (Physical density) | dots / m | 6400 |
| Pixels (Pixel composing) | 1B |
| LED Specifications (Led specification) | DIP546 |
| LED parameter (Led parameter) | Λd: 465nm-470nm |
| LV: 400mcd-500mcd |
| VF: 3.0v-3.4v |
| Drive mode (Driving way) | 1/4 scan (1 / 4Scan) |
| Horizontal viewing angle (Level vision) | ° | 100 |
| Single module size (Size of single module) | mm | 400*200 |
| Single module resolution (Prase of single module) | dot | 32*16 |
| Single module weight (Weight of single module) | Kg | 0.726 |
| The number of modules / square (Module QTY / m) | pcs | 12.5 |
| Module lifetime (Module life) | 100,000 hours (One hundred thousand hours) |
| Control mode (Control mode) | Asynchronous or synchronous (Asynchronism or synchronism) |
| Grayscale / color (Grey scale / Colors) | Blue (Blue) |
| White balance brightness (White balanced brightness) | ≥1500cd / m |
| Brightness adjustment (Brightness adjusted by) | Software adjustment (control by software) |
| Average power consumption (Avg.power consumption) | ≤150/ ㎡ |
| Maximum power consumption (Max.power consumption) | ≤200/ ㎡ |
| Best viewing distance (Viewing distance) | M | 15m-50m |
| Display Mode (Display mode) | 1024*768/800*600 |
| Operating voltage (Working voltage) | AC220V ± 5% |
| Ambient Temperature (Operating temperature) | (-40℃-+80℃) |
| Pixel control rate (Pixel failure ratio) | (0.0002 |
