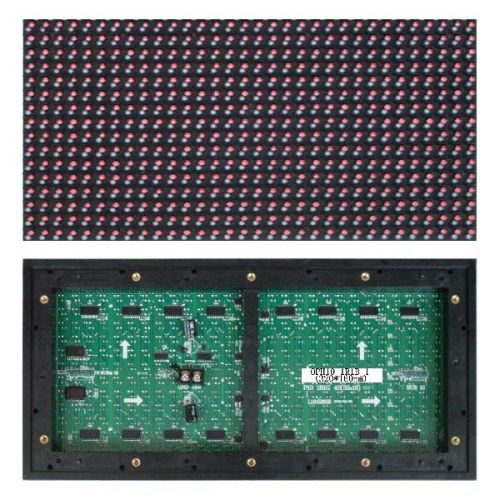

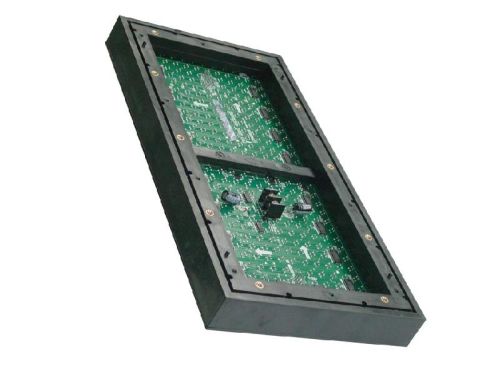

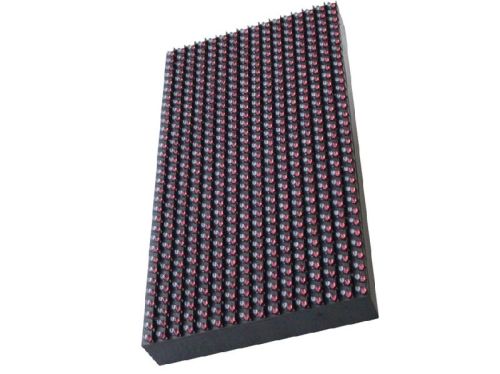

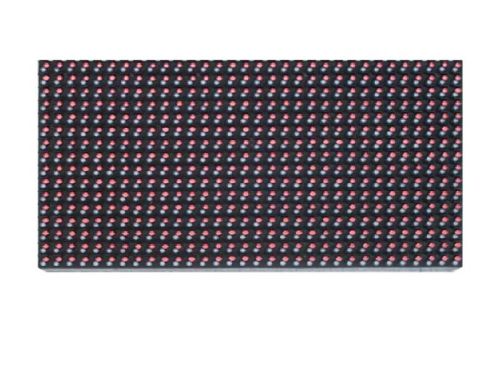

| P10 outdoor color module (P10 outdoor double color module) |
| Item (Item) | Unit (Unit) | Parameter (Parameter) |
| Pixel pitch (Pixel pitch) | mm | 10 |
| Physical density (Physical density) | dots / m | 10000 |
| Pixels (Pixel composing) | 1R1B |
| LED Specifications (Led specification) | DIP546 |
| LED parameter (Led parameter) | R: Λd: 625-630nm IV: 1.9-2.1v LV: 500-600mcd |
| B: Λd: 465-470nm IV: 3.0-3.4v LV: 500-600mcd |
| Drive mode (Driving way) | 1/4 scan (1 / 4Scan) |
| Horizontal viewing angle (Level vision) | ° | 100 |
| Single module size (Size of single module) | mm | 320*160 |
| Single module resolution (Prase of single module) | dot | 32*16 |
| Single module weight (Weight of single module) | Kg | 0.685 |
| The number of modules / square (Module QTY / m) | pcs | 19.5 |
| Module lifetime (Module life) | 100,000 hours (One hundred thousand hours) |
| Control mode (Control mode) | Asynchronous or synchronous (Asynchronism or synchronism) |
| Grayscale / color (Grey scale / Colors) | 256 |
| White balance brightness (White balanced brightness) | ≥3000cd / m |
| Brightness adjustment (Brightness adjusted by) | Software adjustment (control by software) |
| Average power consumption (Avg.power consumption) | ≤250/ ㎡ |
| Maximum power consumption (Max.power consumption) | ≤300/ ㎡ |
| Best viewing distance (Viewing distance) | M | 15m-30m |
| Display Mode (Display mode) | 1024*768/800*600 |
| Operating voltage (Working voltage) | AC220V ± 5% |
| Ambient Temperature (Operating temperature) | (-40℃-+80℃) |
| Pixel control rate (Pixel failure ratio) | (0.0002 |
