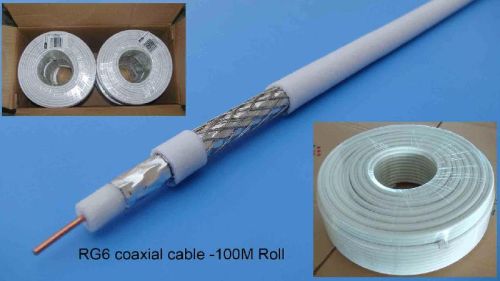

YUXUN Coaxial Cable RG6
Quick Details
| Place of Origin: | GuangDong China (Mainland) | Brand Name: | OEM | Model NO.: | RG6 |
| Type: | Coaxial | NO.of Conductors: | 1 | Colour: | White |
| Length: | 100M | Packing: | Carton/ Wood drum | LIife time: | 16Years |
Specifications
1. OEM Avaliable

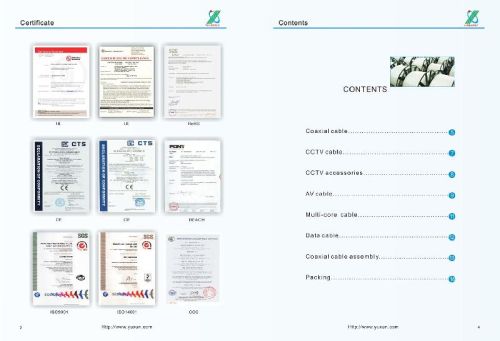

2. ISO9001/ CE/ RHOS Approved
3. Factory Price
4. Market to middle-east/ south america/ africa/ russian/ east EUP
CCTV Satellite Antenna Cable RG6
Specifications:
1) Conductor: 1.02mm Bare Copper
2) Insulation: FPE
3) Shield : Bonded Al-Foil
4) Braiding: BC
5) Jacket : 6.93mmPVC
Braiding | Bare Copper |
Cable external diameter | 6.93±0.1mmPE/ PVC Jacket |
Impedance | 75±3Ohm |
Capacitance | 54pf/ m±3 |
Velocity of Propagation (%) | 85 |
| | |
| | Frequency Maximum (dB/ 100ft) Maximum (dB/ 100m) |
Attenuation @68°F (20degree) | 55MHZ 1.6 5.25 |
| | 187MHZ 2.85 9.35 |
| | 300MHZ 3.55 11.64 |
| | 450MHZ4.40 14.43 |
| | 750MHZ5.65 18.54 |
| | 865MHZ 6.10 20.01 |
| | 1000MHZ6.55 21.49 |
| | 1200MHZ7.98 26.16 |
| | 1450MHZ8.46 27.73 |
| | 1800MHZ9.50 31.35 |
| | 2200MHZ9.73 31.92 |
| Physical Dimensions | |||
| Component | Standard Shield (Dia.mm) | Tir-Shield (Dia.mm) | Quad_Shield (Dia.mm) |
| lnner Conductor | 1.02 | 1.02 | 1.02 |
| Dielectric | 4.57 | 4.57 | 4.57 |
| First Shield (Tape) | 4.75 | 4.75 | 4.75 |
| Jacket | 6.9 | 7.06 | 7.54 |
| SteelMessenger (Single) (Dual) | 1.3 | 1.3 | 1.3 |
| 1.83 | 1.83 | 1.83 | |
Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
