The mecanum wheel is a multi-directional wheel has been used for some time in robotics applications. It allows your robot not only move forward and backward, but also side to side. Using rollers set on a 45� rotational axis parallel to the main rotational axis of the wheel, it allows sideways movement as well as forward and backward movement.

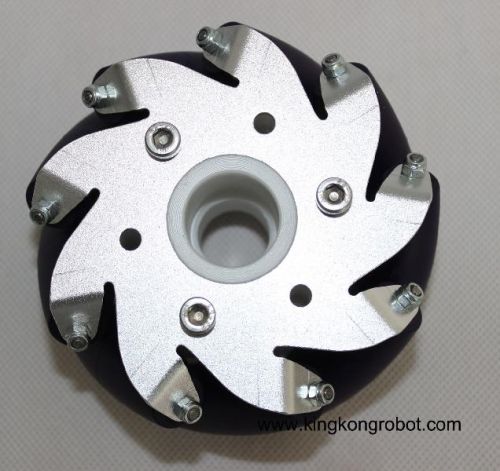

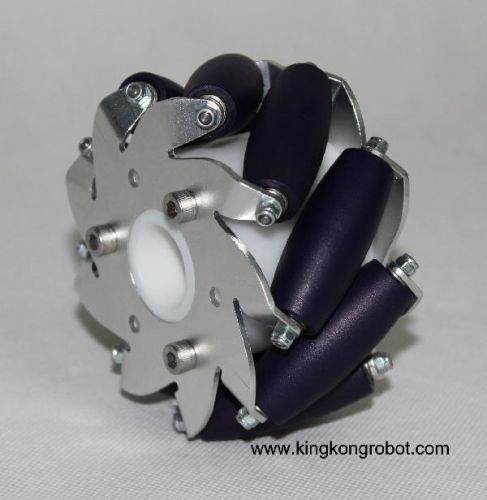

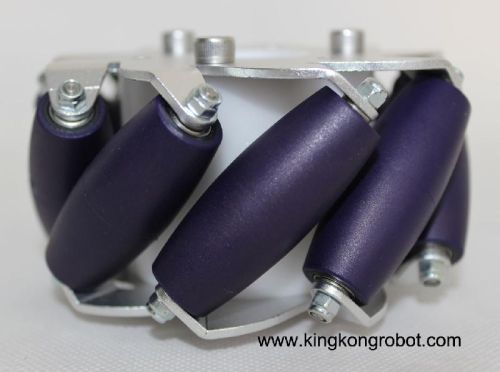

These mecanum wheels utilize 9 rollers positioned between 2 aluminum plates, its aluminum plates are anodizing to white color. In addition, each roller is mounted 2 bearings on the sides to make the wheels move smoothly.

Specifications:

?Outside wheel diameter: 100mm
? Anodized Aluminum plates: White color
?Width: 50mm
?Number of Rollers: 9
?Number of Plates: 2
?Body material: Aluminium alloy
?Roller material: PA+PU
?Spacer material: Nylon
?Length of roller: 47mm
?Net weight: 0.4kg
?Load capacity: 15Kg
