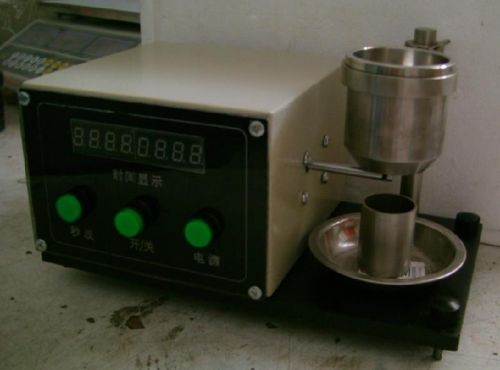

FT-102B powder flowability and density tester
I. Overview FT-102B Powder flowability and densitometer by the Ricoeur company ROOKO Independent research and development production, with high-precision automation and control technology; test-flowing powder, powder and granules, the bulk density, bulk density, bulk density and bulk density parameters; when the test flow, the automatic opening control valves, automatic timing and automatically stop the flow finish timing; When the powder and particle density test, without additional purchase weigh scales, automatic weighing and recording of test data, and automatically calculates the LCD density value; automatically through advanced monitoring and control technologies, in order to reduce the traditional blockage caused by manual way to test error and stopwatch timing error; and conversion funnel equipped with multiple specifications to meet the different densities of the testing requirements for the hopper, powder trait analysis, and product quality control, the ratio has a very good promotion to help enterprises to reduce production costs. positioning structures to ensure the accuracy of test results.

Second, the product is widely used in the production, quality inspection by, research institutes and universities laboratories for materials analysis and measurement use.
Third, the instrument meet the national standard, European and US standard test specification, suitable for chemical, petroleum, pharmaceutical, pharmaceuticals, paints, batteries, ceramics, non-metallic powder material, metal oxide powder, molecular materials, powder metallurgy, plastics, construction materials , soil, dyes, abrasives, food additives, catalysts and other related industries

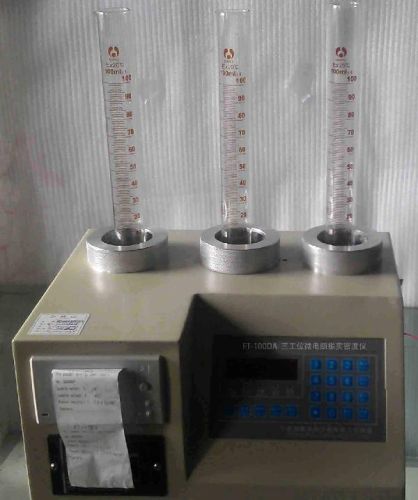

Flowability and compressibility of the powder can be measured by the Hausner Ratio Hausner ratio (tap density / Bulk density) and compressibility index (tap density - Bulk Density / Bulk Density x100) Obtained for the interaction of free-flowing powder, particles is relatively weak, so not tap density close to the tap density for illiquid powder, the results were reversed. It meets Hausner Ratio Hausner ratio closer to 1 Liquidity more good law usually illiquid powder, the ratio is greater than 1.25 This instrument with FT-100A / FT-100B / FT-100E / FT-100CA Tap densitometer test data available Hausner Ratio Hausner ratio and compression index.

Fourth, the technical parameters
1 Funnel: a cylindrical cylinder configuration composed of a plurality of conversion funnel, the funnel the material is made of stainless steel, and has a sufficient wall thickness, hardness, smoothness, to prevent deformation and excessive wear.

2. Convertible funnel caliber mm : 2.5 ; 4.0 ; 5.0 ; 6.0 ; 7.0 ; 8.0 ; 9.0 ; (According to user needs optional)

3. time limit: 0-99999S Arbitrarily set

4. Weighing range: 0-2000g ; Accuracy 0.01g

5. Funnel volume: 200ml

6. With a receiving container volume has 25ml , 100ml , 200ml , 250ml , 500ml (According to user needs optional)
7 The instrument control box electrical parts and test parts, automatically open the discharge port timing. After the sample outflow stop the clock.

8. enter: 220V ± 10% At room temperature environment

FT-102BA in FT-102B Configure the printer to automatically print test data basis, optional 232 Interface data storage and output
Ricoeur (Albert) Instrument Production tips, as well as associated products FT-102A vibration funnel bulk density tester, FT-100A tap density tester; FT-101 Scott capacity meter bulk density tester, FT -102 Hall flow meter / Bulk Density Tester - stainless steel; FL4-1 Hall flow meter / powder flowability tester - brass
