RFC-W Series Monobloc 3-in-1 Juice Filling Machine

50000 USD

Description:

Fillex's water bottling plant are specially designed to fill non-carbonated drink such as still water, flavor water, & wine in any shape 200ml to 2250ml PET bottles or glass bottle with screw caps, pressure caps or crown capping. Monobloc rinser filler capper design.

Fillex expects the opportunity to cooperate with you!

Model(RFC-W)	32-32-8	40-40-10	50-50-12
Capacity(BPH)	15000	18000	22000
Rinsing water Pump Power(KW)	0.37	0.37	0.37
Suitable to Bottle Shape	Round and Square container Bottle diameter: 50-120mm Bottle Height: 160-320mm
Drive Motor	3.92	5.87	7.87
Rinsing Time(s)	1.92	2	2
Drain Time(s)	1.7	1.2	1.2
Water Consumption(T/H)	2	3	3
Compressed air consumption (m³/min)	0.8	0.8	0.8
Dimension(LWH)mm	355026502700	470033202700	590041502700

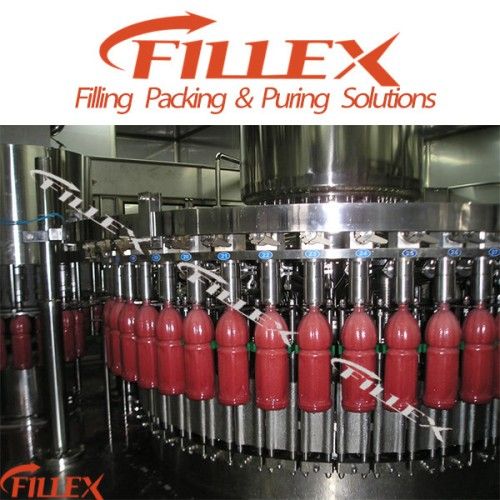

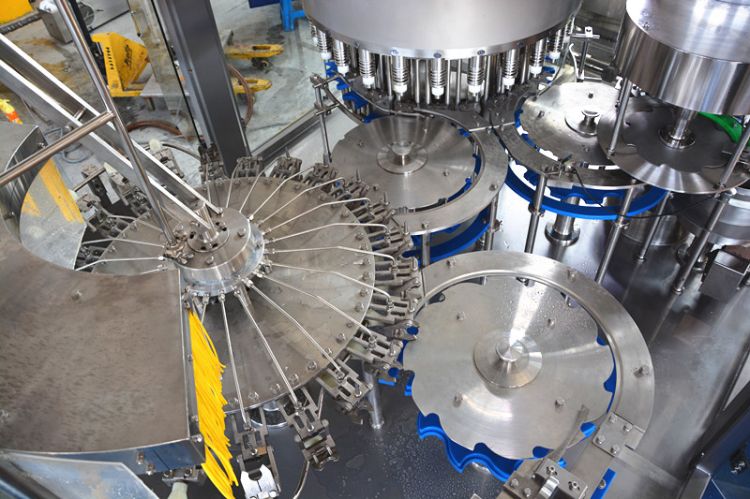

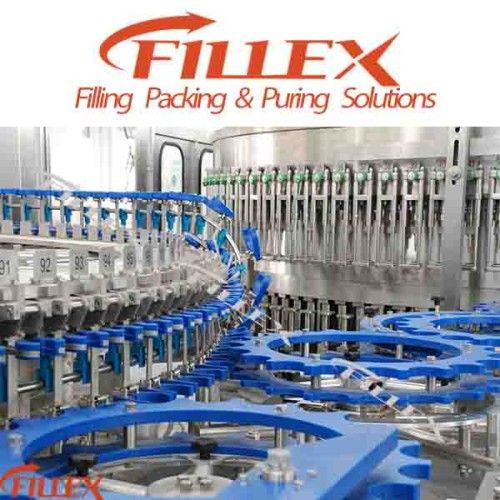

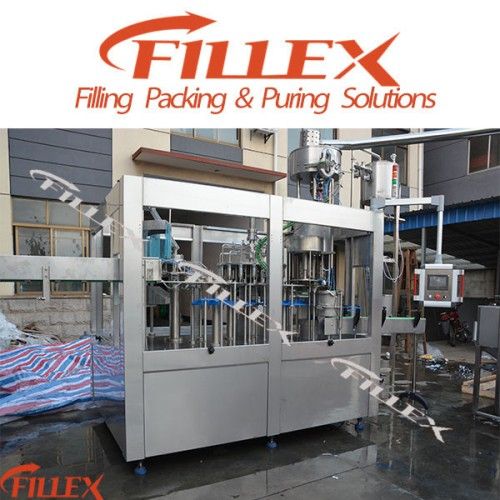

Detailed pictures:

If you do not have the bottle: PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle

If you have the bottle, you can start with this step directly Water treatment system: Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

Filling&Packing part : Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock

Your final product? Your bottle & cap's material & size? Your estimated production rate requirement?Tell us please, our pleasure to serve you.
