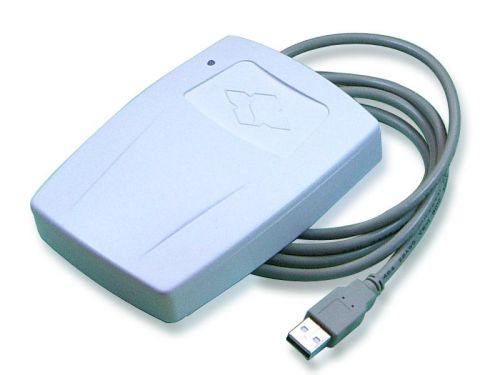

Low cost hf 13.56mhz rfid reader\writer-mr701

bargain

MR701 series, based on NXP PCD or compatible PCD, is popular and high performance desktop reader. The reader supports series IC cards according to ISO14443, ISO15693; various contactless IC card under international standard; especially the contactless CPU cards under ISO14443-4. Meanwhile the reader is available to pass EMV2000 and PBOC 2.0 and be authenticated by many laboratories-Visa Wave & Pay Pass (by FIME) and the Bank Card Test Center. There are 2 SAM card slots in the reader. The One Card solution system was optimized. So it can support fully SAM cards under 9600bps & 38400bps.

Qualifications:

•PCD: NXP RC500, RC531, RC632, RC400

•Working frequency: 13.56MHz

•RF standard: ISO14443A, ISO14443B, ISO15693

•Operating distance: 100mm (MIFARE One, normal distance)

•SAM card slot: 2 slots, supported ISO7816 T=0, supported 9600bps & 38400bps

•Interface: RS232C or USB (build-in CP2102 USB to RS232 converter)

•Baud rate: 9600 ~ 115200 BPS

• Power supply: DC5V

•Power consumption: 0.9W

•Dimension: 123mm*88mm*25mm

•Weight: about 150g

•Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)

•Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)

• PC software: TransWin

• Program (SDK) : VC, VB, C++ Builder, DELPHI, Power Builder
