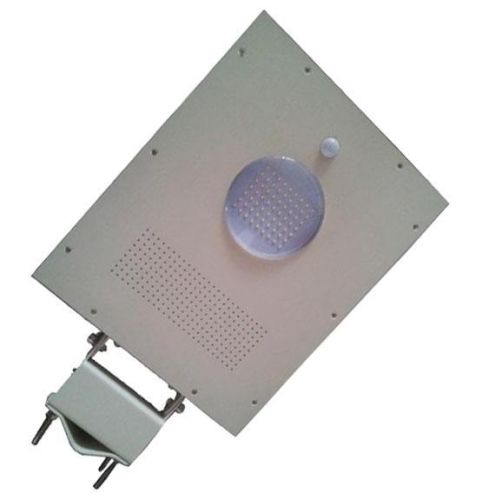

Integrated solar street light, DH201-208B

250-300 USD

Integrated solar street light

1. our company mainly produce solar panel, solar street light and solar garden light, and the solar street light is our key products.

2. there is the widely usage of the solar street light. To used for highway, city main street, residential area, city public garden, outdoor stadium. . . . . . . . . we can produce the light as the specific demands, just like the light sourse, pole colour, battery position and so on.

With reliable quality and very competitive prices, we have exported products to USA, South America, Europe, India and Southeast Asia, and gotten good feedbacks from our overseas customers.

Specification:

Material: Aluminum alloy

Solar panel : 18V 15W

Lamp source: 12V 8W

Battery: Special battery for solar street light

Pole Height: 3-4M

Lighting time: 8-12 hours, alternative

Warranty: One year

Package:

Size: 515 * 320 * 52mm

Packing foot 520 * 400 * 150mm

NW / GW: 6.8kg / 7kg

Carton Size: 550 * 420 * 600mm

Quantity / big box: 4 sets / big box

Each large box GW: 27kg

Container: 800 sets / 20ft

1600 sets / 40 container

Some details of other specification:

Model

Specifications

Package Size

DH201-206

1. Material: Aluminum alloy

2. Solar panel: 18V 12W

3. Lamp source: 12V 6W

4. Battery: Special batteryonlyfor solar street light

5. Suitable installation height for the pole: 2-3m

6. Lightingtime: 8-12 hours, alternative

7. Warranty: 1year

Product size: 420*265*50mm

Package size: 475*320*125mm

NW / GW: 4.5kg/ 5kg

Carton Size: 495*340*550mm

Quantity / big box: 4 sets / big box

GW/ bigbox: 21kg

Container: 1100sets/ 20'GP

2800sets/ 40'GP

DH201-208B

1. Material: Aluminum alloy

2. Solar panel: 18V 15W

3. Lamp source: 12V8W

4. Battery: Special batteryonlyfor solar street light

5. Suitable installation height for the pole: 3-4m

6. Lightingtime: 8-12 hours, alternative

7. Warranty: 1year

Product size: 515*320*52mm

Package size: 520*400*150mm

NW / GW: 6.8kg/ 7kg

Carton Size: 550*420*600mm

Quantity / big box: 4 sets / big box

GW/ bigbox: 27kg

Container: 800 sets/ 20'GP

1600sets/ 40'GP

DH201-208A

1. Material: Aluminum alloy

2. Solar panel: 18V 15W

3. Lamp source: 12V 8W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 3-4m

6. Lighting time: 8-12 hours, alternative

7. Warranty: 2year

Product size: 515*320*52mm

Package size: 520*400*150mm

NW / GW: 6.8kg/ 7kg

Carton Size: 550*420*600mm

Quantity / big box: 4 sets / big box

GW/ bigbox: 27kg

Container: 800 sets/ 20'GP

1600sets/ 40'GP

DH201-212

12W

1. Material: Aluminum alloy

2. Solar panel: 18V 18W

3. Lamp source: 12V12W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 3~4m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2year

Product size: 515*320*52mm

Package size: 520*400*150mm

NW / GW: 6.8kg/ 7kg

Carton Size: 550*420*600mm

Quantity / big box: 4 sets / big box

GW/ bigbox: 27kg

Container: 800 sets/ 20'GP

1600sets/ 40'GP

DH201-215

15W

1. Material: Aluminum alloy

2. Solar panel: 18V 25W

3. Lamp source: 12V15W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 4~5m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2year

Product size: 650*350*600mm

Package size: 750*450*150mm

NW / GW: 8.5kg/ 9kg

Carton Size: 750*450*300mm

Quantity / big box: 2sets / big box

GW/ bigbox: 18kg

Container: 650 sets/ 20'GP

1300sets/ 40'GP

DH201-218

18W

1. Material: Aluminum alloy

2. Solar panel: 18V 40W

3. Lamp source: 12V18W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 5~6m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2year

Product size: 920*325*430mm

Package size: 960*370*210mm

NW / GW: 13.5kg/ 14kg

Carton Size: 960*370*210mm

Quantity / big box: 1sets / big box

GW/ bigbox: 14kg

Container: 650 sets/ 20'GP

1300sets/ 40'GP

DH201-220

20W

1. Material: Aluminum alloy

2. Solar panel: 18V 45W

3. Lamp source: 12V20W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 5~6m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2year

Product size: 920*325*43mm

Package size: 1190*400*220mm

NW / GW: 17.8kg/ 18kg

Carton Size: 1190*400*220mm

Quantity / big box: 1sets / big box

GW/ bigbox: 18kg

Container: 270 sets/ 20'GP

550 sets/ 40'GP

DH201-225

25W

1. Material: Aluminum alloy

2. Solar panel: 18V 50W

3. Lamp source: 12V25W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 6~7m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2year

Product size: 920*325*43mm

Package size: 1190*400*220mm

NW / GW: 17.8kg/ 18kg

Carton Size: 1190*400*220mm

Quantity / big box: 1sets / big box

GW/ bigbox: 18kg

Container: 270 sets/ 20'GP

550 sets/ 40'GP

DH201-230

30W

1. Material: Aluminum alloy

2. Solar panel: 18V 60W

3. Lamp source: 12V30W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 6~7m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2year

Product size: 920*325*43mm

Package size: 1190*400*220mm

NW / GW: 18.5kg/ 19kg

Carton Size: 1190*400*220mm

Quantity / big box: 1sets / big box

GW/ bigbox: 18kg

Container: 270 sets/ 20'GP

550 sets/ 40'GP

DH201-240

40W

1. Material: Aluminum alloy

2. Solar panel: 18V 60W

3. Lamp source: 12V40W

4. Battery: Special battery only for solar street light

5. Suitable installation height for the pole: 6~7m

6. Lighting time: 8~12 hours, alternative

7. Warranty: 2yea

Product size: 920*325*43mm

Package size: 1190*400*220mm

NW / GW: 19kg/ 20kg

Carton Size: 1190*400*220mm

Quantity / big box: 1sets / big box

GW/ bigbox: 18kg

Container: 270 sets/ 20'GP

550 sets/ 40'GP

Lamp pole

Thickness of the steel wall: 2.75mm

Hot dip galvanized electrostatic spray, Never rust, , Default color: White

Pls note if you need other colors

Notes:

1. The price is based on FOB Shanghai port (Tax and freight included)

2. It is for standard configuration. And appropriate adjustments on request according to the configuration and time control
are also available.

3. It keeps valid for 30 days. And the parameter and price are according to the final contract.

4. Terms of payment: 30% down payment and 70% paid before delivery

Pls contact me if you have any questions. Here is our website www.dahuasmart.com
