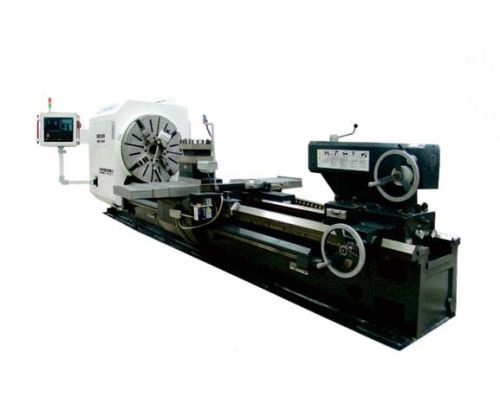

High precision CNC lathes RHCK6163
bargain
add to cart* Siemens CNC system
* Spindlebox equips with precise spindle unit.
* Themain motor is with function of stepless speed change.
* Feedingsystem contains high precision ball screw and servo motor.
* Thelathe bed is one integral casting
* Thelive centre is in the tailstock, improving theprecision
* Theelectric box is equipped with air conditioner
Project Item | Unit Unit | RHCK61100 | RHCK61125 | RHCK61160 | |
Capacities range of processing | |||||
Maximum turning diameter over bed | Swing over bed | mm | 1000 | 1250 | 1640 |
Maximum turning diameter on the turret | Swing over carriage | mm | 630 | 880 | 1250 |
Maximum workpiece length | Max. Workpiece length | mm | 1720 / 3220 / 5220 | ||
The maximum turning length | Max. Turning length | mm | 1480/ 2980/ 4980 | ||
Bed rail width | Span of guideway | mm | 755 | ||
Spindle Spindle | |||||
Spindle end code | Spindle nose | A215 | |||
Chuck | chuck | Manually four claws φ1000 | |||
Spindle through-hole diameter | Spindle bore | mm | φ130 | ||
Front spindle taper | Taper hole of spindle | mm | Metric 140 | ||
Spindle taper top | Spindle Taper | MT- 6 | |||
Spindle speed range (stepless) | Spindle speed range (stepless) | 4-400r / min | |||
Spindle center height from the bed | Center height from bed | mm | 500 | 625 | 820 |
Feed Feed motion | |||||
X / Z to feed to the minimum increment | Min.feed increment of x- / z-axis | mm | 0.001 / 0.001 | ||
X / Z to rapid traverse | Rapid speeds of x- / z-axis | mm / min | 3000 / 6000 | ||
X to the maximum stroke | Max.travel of x-axis | mm | 570 | 580 | 630 |
Turret Turret | |||||
Turret Number of stations | Turret working position | 4 | |||
Turret Size | Turret specifications dimensions | mm | 300*300 | ||
Arbor section | Section of tool shank | mm | 40*40 | ||
Tailstock Tailstock | |||||
Tailstock sleeve diameter | Diameter of Tailstock quill | mm | 160 | ||
Tailstock quill stroke | Travel of tailstock quill | mm | 300 | ||
Tailstock sleeve Taper of hole | Taper hole of tailstock quill | MT- 6 | |||
Accuracy and performance standards Accuracy and Acceptance conditions | |||||
Part accuracy | Workpiece accuracy | IT6 ~ IT7 | |||
Surface roughness | Surface roughness | μm | Ra0.8 | ||
Implementation of standards | Acceptance conditions | JB / T8324.1-96 Jane precision CNC horizontal lathe | |||
Other Others | |||||
Main motor power | Main motor power | KW | 30 | ||
Machine size Machine overall demensions | |||||
Machine length | Machine Length | mm | 4500/ 6000/ 8000 | ||
Machine width | Machine Width | mm | 2680 | ||
Machine height | Machine Hight | mm | 2100/ 2300/ 2600 | ||
Machine quality | Machine mass | kg | 9000 | 11000 | 13000 |
