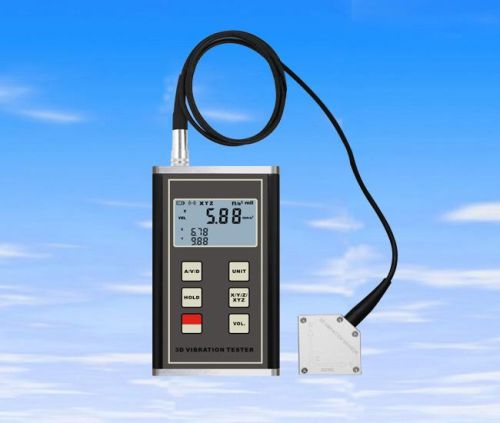

3D vibration meter VM-6380

bargain

vibration meter models: VM6380, VM-6370, VM6360, VM-6320, VM-6310

Model: VM6380 (3D)

Application: used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

Is pecifically designed for present measuring various mechanical vibration. So as to provde the data for the quality control, run time and equipment upkeep.

Iuse the high-performance acceleration meter, realize the repetitiveness and accurate measurement.

It has the function of testing axle bearing situation.

SPECIFICATIONS

Vibration Sensor: 3-Axis Piezoelectric accelerometer

Display: 4 digit LCD backlit

Axial Vibration: any one axis of X , Y, Z or 3 axes of XYZ

Measurement Range:

Velocity : 0.01-400.0 mm/ s 0.000-16.00 inch/ s true RMS

Acceleration : 0.1-400.0 m/ s² 0.3-1312 ft/ s² 0.0-40g equivalent peak

Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak

Frequency Range for Measuring: 10Hz. to 10kHz.

Accuracy: 5% of reading + 2 digits

Metric/ Imperial conversion

Analogue Output: AC output 0~2.0V peak full scale

(load resistance: above 10k)

With Max. value hold and low battery indication

PC interface: RS232C or Bluetooth interface

( Cable and software is not included)

Power supply: 2x1.5v AA size (UM-3) batteries

Power off : Manual off at any time or auto power off is enabled by user

Operating conditions:

Temperature : 0-50 ℃

Humidity : below 95% RH

Dimensions: 124x62x30mm/ 4.9x2.4x1.2 inch

Weight: 120g (not including batteries)

Accessories included :

Powerful rare earth magnet 1 pc.

Accelerometer 1 pc.

Stinger probe (Cone) 1 pc.

Stinger probe (Ball) 1 pc.

Carrying case 1 pc.

Operation manual 1 pc.

Optional accessories: Headphones for use as electronic stethoscope

Cable and software for RS232C
