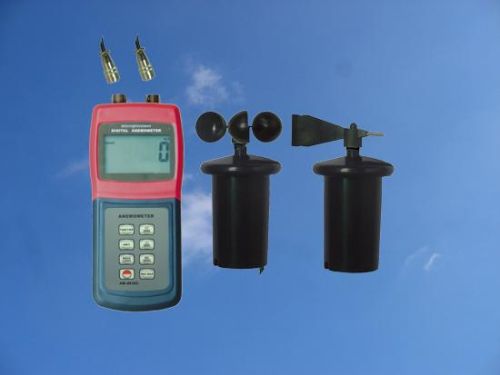

AM-4836C

1. APPLICATION

Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department

2. SPECIFICATIONS

2.1 General Specifications

Display 0.5 (13 mm) 4-digit LCD

Measurement units Air Velocity: m/ s, km/ h, ft/ min, knots

Air Flow: CMM (m³/ min) ;

CFM (ft³/ min)

Beaufort Scale: Force

Wave Height: m

Direction: °from the North direction

Temp: °C & °F

Data hold Maximum Value

Data memorized 24 groups

Sampling rate reading per second approx

Sensors Air velocity/ flow sensor:

3-cup probe

Direction probe: Low friction probe

Temperature sensor:

Precision thermistor

Automatic Power off 0-9 minutes set by users

Data Output RS 232 C serial interface

Operating Temperature 14°F to 140°F (-10°C to 60°C)

Operating Humidity Max. 80% RH

Power Supply 4x1.5AAA size

Weight 260g (0.57lb) including batteries & probe

Dimensions Main instrument: 156x67x28mm

(6.1x2.6x1.1')

Velocity sensor: 65x65x115mm

Direction sensor: 86x69x115mm

Optional Accessories Cable+Software for RS232C or USB

2.2 Range Specifications

Air Velocity Range Resolution Accuracy

m/ s (meters per sec) 0.4-45.0 0.1 m/ s ± (2%+0.1m/ s)

km/ h (kilo-meters/ hour) 1.4-162.0 0.1 km/ hr ± (2% +0.1km/ hr)

ft/ min (feet per minute) 80-8860 0.1 ft/ min ± (2% + 1ft/ min)

knots (nautical MPH) 0.8-88.0 0.1 knots ± (2% +0.1 nots)

Air Flow

CMM (cubic meters/ min) 0-9999 0.001 to1 ± (2% +1m³/ min)

CFM (cubic ft/ min) 0-9999 0.001 to1 ± (2% +1ft³/ min)

Beaufort Scale 0-12 0.1 ±0.5

Direction 0-360° 22.5° ±22.5°

Wave Height 0-14 0.1 ±0.1

Air Temperature 14 - 140℉ 0.1 ℉ 0.9 ℉

-10-60 ℃ 0.1 ℃ 0.5 ℃
