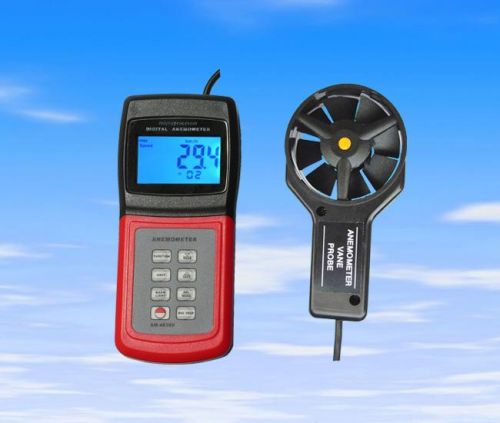

anemoscope AM-4836V

bargain

AM-4836V

Application: Installation, debug and repair for refrigeration industry, ventilation duct, environment monit-or, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.

Model: AM4836V

Display 0.5 (13mm) 4-digitLCD

Measurement unist Air Velocity: m/ s, km/ h, ft/ min, knots

Air Flow: CMM (m3/ min) CFM (ft3/ min)

Beaufort scale: Force

Wave Height: m

TEMP: ℃&℉

Data hold MaxIMum Value

Data memorized 24groups

Sampling rate reading per second approx

Sensors air velocity/ flow sensor:

Conventional angled vane arms

Wa/ ith low-friction ball bearing

Temperature sensor:

Precision thermistor

Automatic Power off 0-9minutes set by users

Data output RS232C serial interface

Operating temperature 14℉to140℉ (-10℃to60℃)

Operating humidity Max. 80%RH

Power supply 260g (0.571b) including batteries&probe

Dimensions main instrument: 156x67x28mm (6.1x2.6x1.1')

Air Velocity Range Resolution Accuracy

m/ s (meters per sec) 0.4-45.0 0.1 m/ s ± (2%+0.1m/ s)

km/ h (kilo-meters/ hour) 1.4-162.0 0.1 km/ hr ± (2% +0.1km/ hr)

ft/ min (feet per minute) 80-8860 0.1 ft/ min ± (2% + 1ft/ min)

knots (nautical MPH) 0.8-88.0 0.1 knots ± (2% +0.1 nots)

Air Flow

CMM (cubic meters/ min) 0-9999 0.001 to1 ± (2% +1m³/ min)

CFM (cubic ft/ min) 0-9999 0.001 to1 ± (2% +1ft³/ min)

Beaufort Scale 0-12 0.1 ±0.5

Direction 0-360° 22.5° ±22.5°

Wave Height 0-14 0.1 ±0.1
