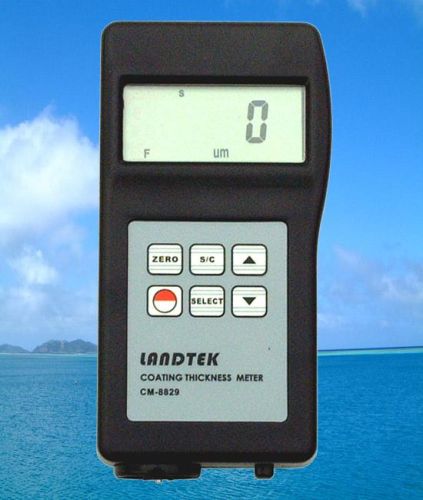

coating thickness gauge CM-8829FN in built probe
bargain
add to cart| Application: used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. |
| Model: CM8829 |
| In built probe (s) |
Operating principle: magnetic induction/ eddy current (F/ NF) magnetic inudction: to measure the thickness of nonmagnetic coating layers on magnetic substrate eddy current: to measure the thickness of non-conductive coating layers on non-ferrous substrate |
| Measuring range: 0-1250um/ 0-50mil |
| Resolution; 0.1/1 |
| Accuracy: ±1-3%n or ±2.5um |
| Min. measuring area: 6mm |
| Min. sample thickness: 0.3mm |
| Battery indicator: low battery indicator |
| Metric/ imperial: convertible |
| Power supply: 4x1.5V AAA (UM-4) battery |
| Auto power off |
| Operating conditions: 0-+45℃ (32℉-104℉) ,≤90%RH |
| Dimensions: 126x65x27mm |
| weight: 81g (not including battery) |
| Optional accessories: |
| other range 0-200um to 15000um |
| RS-232C cable & software: |
| 1. USB adaptor for RS-232C |
| 2. Bluetooth interface |
