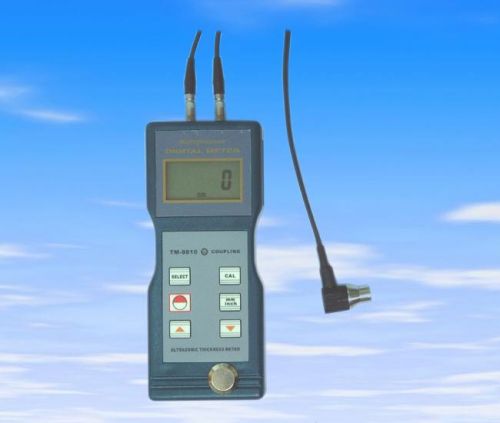

thickness meter TM-8810

bargain

Application:

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Model: TM8810

Measuring range (metric/ imperial) : 1.2-200mm, 0.06-8inch

Operating principle: ULTRASONIC

Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm

Accuracy: ± (0.5%n+0.1)

Power supply: 4x1.5vaa (UM-3) battery

Battery indicator: low battery indicator

Operating conditions: 0-+45℃ (32℉-104℉) ,≤90%RH

Dimensions: 160x68x32mm

weight: 208g (not including battery)

Optional Accessories:

6MФ6mm thin Material probe: Measuring range (steel) : 1.0 50.0mm Operating temperature: -10~+60℃

5MФ12high temperature probe: Measuring range (steel) : 1.0~225.0mm (normal temperature) Measuring range (steel) : 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
