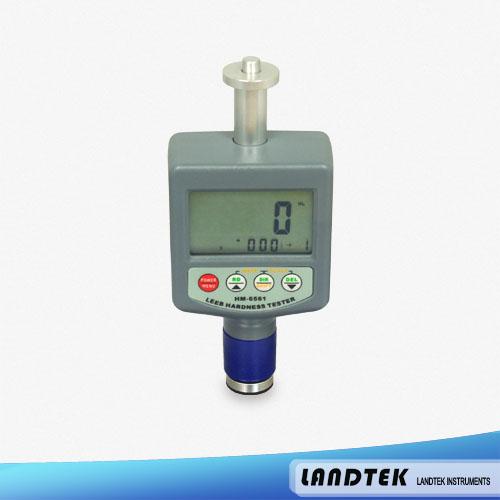

durometer HM-6561
bargain
add to cart| HM-6561 |
| 1.1 Typical Applications |
| * Die cavity of molds |
| * Inspection of bearing and other mass produced parts on a |
| production line |
| * Failure analysis of pressure vessel, steam generator and |
| other equipment |
| * Inspection of installed machinery, permanent parts of |
| assembled systems and heavy work pieces. |
| * Testing surface of a small hollow space |
| * Material identification in the warehouse of metallic materials |
| * Rapid testing in large range and multi-measuring areas for |
| large-scale work piece |
| 1.2 Testing Features |
| * Palm size for narrow space. |
| * Test at any angle, even upside down. |
| * Direct display of hardness scales HRB, HRC, HV, HB, HS. |
| HL. |
| * Large memory could store 50 groups including single |
| measured value, impact direction, material and hardness |
| scale etc. |
| * User recalibration function allowed. |
| * Can communicate with PC computer for statistics and |
| printing by the optional cable. |
| * Manual or automatic shut down. |
| * Low battery indication. |
| 1.3 Technical Specifications |
| 9 |
| Accuracy: Display error ±0.8% at LD=900 |
| Measuring range: 200-900L |
| Conversion: HL-HRC-HRB-HB-HV-HSD |
| Materials: 9 different common materials |
| With RS232C interface |
| Memory: 50 data can be stored and re-readable |
| Impact device: D Will handle the majority of hardness testing |
| applications. Weight: 75g |
| Power supply: 2x1.5V AAA size battery |
| Dimension: 146*65*36mm |
| Weight: 130g (not including batteries) |
| Working temperature: - 10℃~+50℃ |
| Storage temperature: - 30℃~+ |
