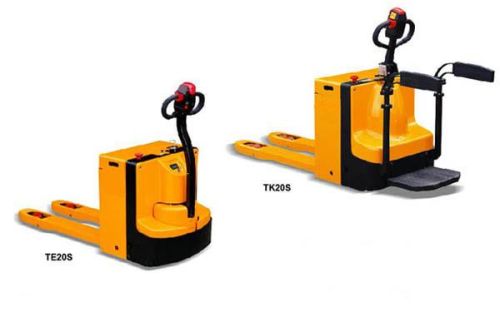

TK20L Power Pallet Truck
bargain
add to cart| Powered Pallet Truck TE/ TK series | ||
| Top Quality Range | ||
| Heavy Duty Design | ||
| • Maneuver loads up ramps and dockboards effortlessly. | ||
| • Compact design combines with new technology, making this pallet truck ideal for narrow, cramped aisles. shortest head length in the market permits the best possible maneuverability. | ||
| • Smooth stepless speed control with European technology. | ||
| • Power unit with European technology. | ||
| • Powerfull traction battery. | ||
| • DC driving motor with European technology. | ||
| • Drive unit with electromagnetic brake. | ||
| • Conforms to EN1726 and EN1175-1. | ||

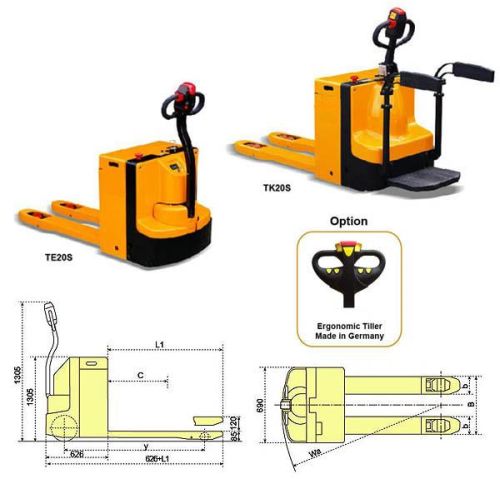

| Model | TK20L | |
| Type | Unit | with platform |
| Capacity | (kg) | 2000 |
| Load Center | C (mm) | 600 |
| Max. Fork Height | H (mm) | 205 |
| Min. Fork Height | h (mm) | 85 |
| Fork Length | L1 (mm) | 1150 |
| Individual Fork Width | b (mm) | 160 |
| Wheel Base | y (mm) | 1406 |
| Turning Radius | Wa (mm) | 1946 |
| Traveling Speed With/ Without Load | (Km/ h) | 3.6/5.4 |
| Lifting Speed With/ Without Load | (mm/ s) | 22/32 |
| Lowering Speed With/ Without Load | (mm/ s) | 50/55 |
| Drive Wheel | 1200W, Ø250mm | |
| Power Unit (lifting motor) | (W/ V) | 800/24 |
| Traction Battery | 24V/ 210Ah, 185kg | |
| Battery Charger | 25A/ 24V | |
| Overall Dimension (L*W*H) | (mm) | 2125*690*1305 |
| Fork Overall Width | B (mm) | 680 |
| Net Weight | (kg) | 343 |
| Tiller | O | |
| O = Option Note: Specification and materials are subject to change without notice. | ||
