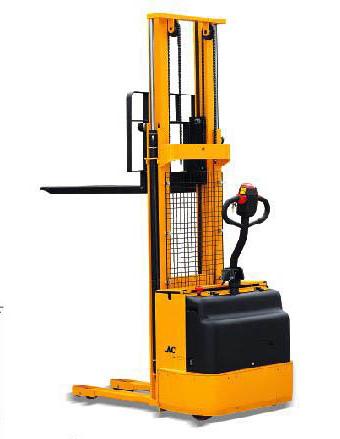

FY1529 Electric Stacker
bargain
add to cart| Full Electric Stacker FY / FY`AC series | ||
| With DC or AC technology | ||
| • Double cylinder are mounted on both sides for wide view while loading and transporting. | ||
| • High-comfort tiller grip reduces fatigue, improving productivity. | ||
| • Heavy-duty design with top quality mast construction. | ||
| • Powerful drive and power unit made in Europe. | ||
| • Top quality electronic control system made in Europe. | ||
| • Conforms to EN1757-1: 2001, EN 1726. | ||
| Model | FY1529 | |
| FY1529AC | ||
| Capacity | (kg) | 1500 |
| Max. Fork Height | (mm) | 2900 |
| Lowered Fork Height | (mm) | 90 |
| Load Centre | (mm) | 600 |
| Fork Length | (mm) | 1150 |
| Fork Overall Width | M (mm) | 540 |
| Fork Individual Width | N (mm) | 160 |
| Motors Traveling | (KW/ V) | 1.2/24 |
| Motors Lifting | (KW/ V) | 2.2/24 |
| Travelling Speed With/ Without Load | (km/ h) | 4.0/5.5 |
| Lifting Speed With/ Without Load | (km/ h) | 95/122 |
| Lowering Speed With/ Without Load | (km/ h) | 110/60 |
| Front Wheel | (mm) | Ø78*70 |
| Rear Wheel | (mm) | Ø150*75 |
| Driver Wheel | (mm) | Ø250*80 |
| Battery (service free) | (Ah/ V) | 200/24 |
| BatteryCharger | (A/ V) | 20/24 |
| Option Traction Battery | (Ah/ V) | 240/24 |
| Turning Radius | (mm) | 1560 |

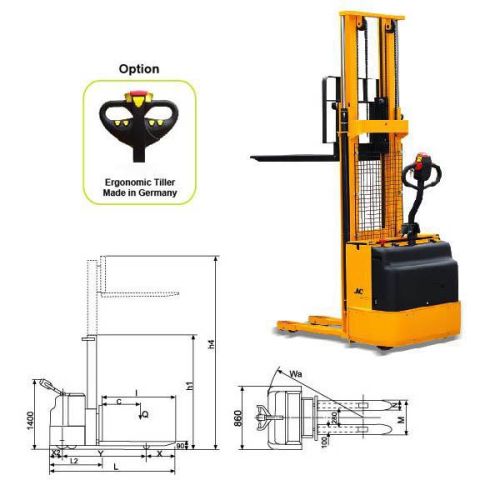

| Overall Dimension | X (mm) | 559 |
| X2 (mm) | 195 | |
| Y (mm) | 1319 | |
| L2 (mm) | 820 | |
| L (mm) | 1970 | |
| Wa (mm) | 575 | |
| h1 (mm) | 2025 | |
| h4 (mm) | 3544 | |
| Net Weight | (kg) | 758 |
