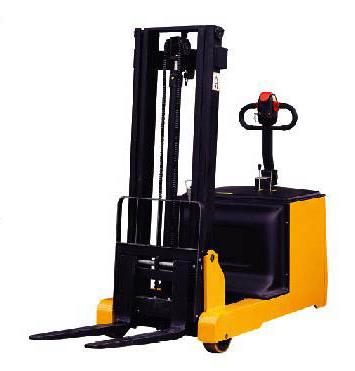

FX0625 Counter Balance Stacker
bargain
add to cart| Counter Balance Stacker FX series | ||
| • The non-straddle lift is ideal for feeding machinery or lifting to docks and mezzanines where base legs could interfere. | ||
| • Heavy-duty mast can been adjusted to suitable degree. | ||
| • Forged fork for easy access. | ||
| • Powerful drive and power unit made in Europe. | ||
| • Top quality electronic control system from Curtis. | ||
| • Conforms to EN 1757-1: 2001, EN1726. | ||
| Model | FX0625 | |
| Capacity | (kg) | 600 |
| Max. Fork Height | (mm) | 2500 |
| Lowered Lifting Height | (mm) | 35 |
| Free Lifting Height | (mm) | 140 |
| Load Centre | (mm) | 400 |
| Mast Tilt Angle | -7°~ 1° | |
| Fork Length | (mm) | 1000 |
| Front Wheel | (mm) | Ø200*80 |
| Driver Wheel | 1.2KW/ 24V, Ø250*80mm | |
| Power Pack (Walking) | (KW/ V) | 1.2/24 |
| Power Pack (Lifting) | (KW/ V) | 2.0/24 |
| Traction Battery/ Charger | 240Ah/ 24V, 210kg; 30A/ 24V | |
| Net Weight | (kg) | 1515 |

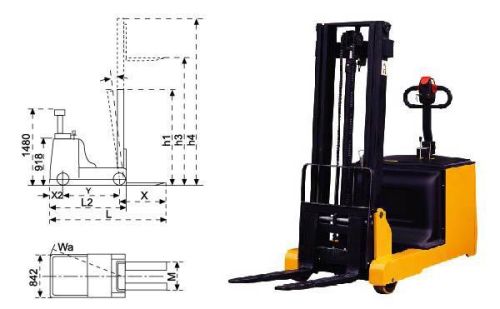

| Dimension | X (mm) | 920 |
| X2 (mm) | 245 | |
| Y (mm) | 1130 | |
| L2 (mm) | 1485 | |
| L (mm) | 2295 | |
| M (mm) | 220-540 | |
| N (mm) | 100 | |
| h1 (mm) | 1860 | |
| h3 (mm) | 2500 | |
| h4 (mm) | 3275 | |
| Wa (mm) | 1375 |
