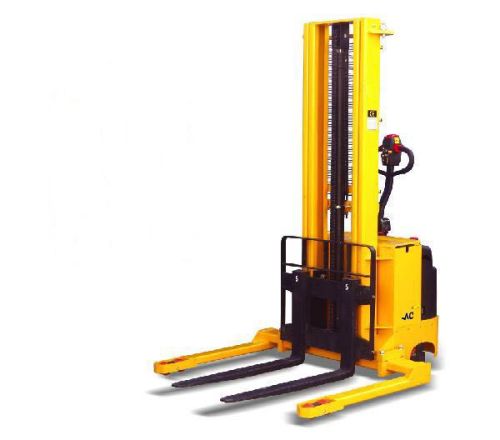

FW1216 Electric Stacker
bargain
add to cart| Electric Stacker With Straddle Leg FW/ FW`AC series | ||
| With DC or AC technology | ||
| • Heavy duty design with top quality mast construction. | ||
| • Straddle leg design suitable for two faces or low pallet. | ||
| • Powerful power pack with European technology. | ||
| • Drive unit with electromagnetic brake. | ||
| • Top quality electronic control system from Curtis. | ||
| • Conforms to EN1757-1, EN 1726. | ||
| Model | FW1216 | |
| FW1216AC | ||
| Capacity | (kg) | 1200 |
| Lifting Height | h3 (mm) | 1600 |
| Min. Fork Height | h (mm) | 65 |
| Load Centre | C (mm) | 500 |
| Fork Length | I (mm) | 1000 |
| Motors Traveling | (KW/ V) | 1.2/24 |
| Motors Lifting | (KW/ V) | 2.2/24 |
| Service Free Battery | 200Ah/ 24V | |
| Battery Charger | 20A/ 24V | |
| Traction Battery (option) | 240Ah/ 24V | |
| Front Roller | (mm) | Polyurethane, Tandem Ø78x70mm |
| Rear Roller | (mm) | Polyurethane, Ø150x75mm |
| Drive Wheel | (mm) | Polyurethane, Ø250x80mm |
| Net Weight | (kg) | 820 |

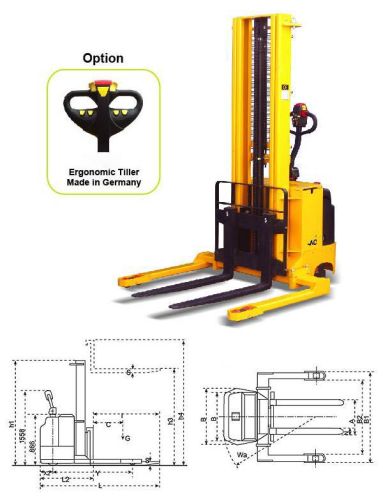

| Dimension | S (mm) | 38 |
| X2 (mm) | 200 | |
| Y (mm) | 1283 | |
| L2 (mm) | 792 | |
| L (mm) | 1792 | |
| B1 (mm) | 1197-1502 | |
| B2 (mm) | 965-1270 | |
| A (mm) | 230-790 | |
| N (mm) | 100 | |
| h1 (mm) | 2166 | |
| h3 (mm) | 1600 | |
| h4 (mm) | 2460 | |
| B (mm) | 940 | |
| Wa (mm) | 1533 | |
