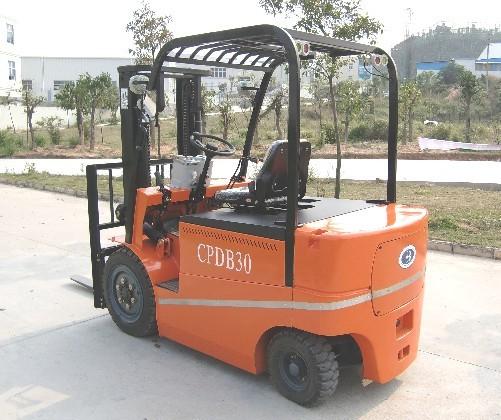

| Model | Unit | CPDB30 |
| Use of premises | - | Zone12 |
| Explosion-proofgrade | - | ExsdIIBT4 |
| Rated lifting capacity | kg | 3000 |
| Load centre | mm | 500 |
| Max.lifting height | mm | 3000 |
| Rree lifting height | mm | 100 |
| Fork Length | mm | 1070 |
| Tilt angle forward/ backward | ° | 6∕12 |
| Overall dimensions | mm | 3590*1240*2160 |
| Min.outside turning radias | mm | 2250 |
| Max.travel speed (laden) | km/ h | 14∕12 |
| Max.lifting speed (laden) | mm/ s | 360∕240 |
| Gradeability | % | 10% |
| Wheel Base | mm | 1600 |
| Tread (front wheels/ rear wheels) | mm | 1000∕980 |
| Min. Underclearance | mm | 90 |
| Electric Motors Rated Output | KW | 10.2∕10 |
| Tyres (size front/ size rear) | MPa | 28*9-15∕18*7-8 |
| Battery (voltage rated/ capacity) | V/ A.h | 80∕500 |
| Service Weight | kg | 5200 |
