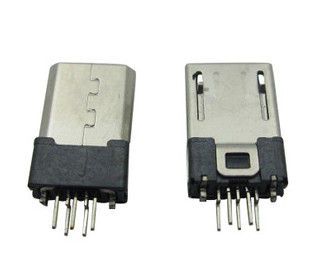

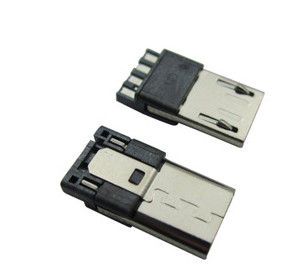

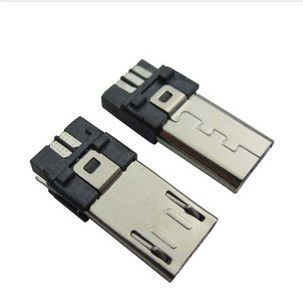

Micro USB Male Connector 5pins Connectors For Mobilephone Cable Handsets GPS 5P

Micro USB Male Connector 5pins Connectors For Mobilephone Cable Handsets GPS 5P

0.1 USD

add to cart

Detailed Product Description

Cycles: 10000Configuration: SMD
Detent Lock: WithFlange: Without
Foot: Small, longShielding: Metal On All Sides

Micro USB Male Connector 5pins Connectors For Mobilephone Cable Handsets GPS 5P

Quick Detail:

Name

UB connector Micro USB

Application

Cellular phone, mobile equipments

Connector

Equal JST Micro USB connector

Circuits/ poles/ pins

5

Pitch

0.8mm (mini)

Certificate

ROHS, UL, HF

Specifications:

Receptacle

JST UB-MC5BR3-SD204-4S, UB-MC5BR3-RS04-4S-1, UB-MC5BR3-M04-4S

Pitch Centerline

0.8mm (mini) ,0.65mm (micro)

Type

Standard, Reverse, Mid mount; AB, B

Gender

male & female

Circuits/ poles/ pins

4/5/8/9/18

Number of Rows

Dual/ double

Orientation

Vertical, Right angle

Termination

Through-hold, Surface mount

Descriptions:

It's a space saving design for USB cable

10000 cycles of mating/ unmating is guaranteed.

SMT configuration, bottom mount

Beveled metal pins: provides ground to PCB and strong board retention

Small footprint: longer

For an interface connector for cellular phone and other USB product conforming to Micro USB standard.

They can be replace Molex, JST Civilux, samtech ect. famous parts, it also assure superior quality and competitive prices.

Application:

USB cable, Mobilephone, smart phone, Adaptors and Peripherals, High Definition Monitors, Multimedia equipment, DVD Players/ Recorders, LCD and TV panel, Notebook PC, PDP and TV Panel

cellular phone and other mobile equipments conforming mobile devices: Tablet PCs, GPS, MP3 and music player

Telecommunications: PBXs, ISDN, Handsets

If you can't find the part number here, please contact us or send your drawing or part number.
