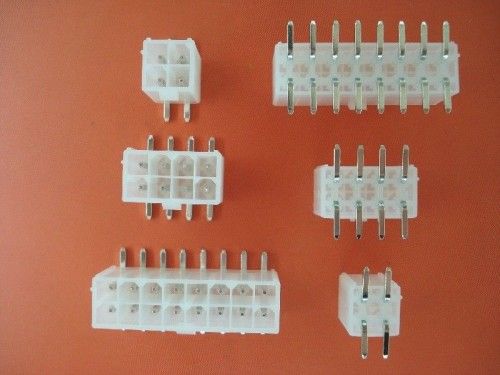

Double Rows SMD Wire To Board Connectors Vertical For Backplanes Equal Molex

0.02 USD

Detailed Product Description

Pitch:	0.165in, 4.2mm	Row:	Single Or Double
PCB Direction:	Through Hole, SMD	Color:	Black, White, Red
Contact Type:	Right Angle And Stragiht Angle	Pins:	3~122~24

Double Rows SMD Wire To Board Connectors Vertical For Backplanes Equal Molex

Quick Detail:

Name	TE VAL-U-LOK connector	Application	Power, Wire-to-Board, Wire-to-Wire, PCB
Connector	AMP 1586041	Circuits/ poles/ pins	2~24
Pitch	0.165'4.2mm	Certificate	ROHS, UL, HF

Specifications:

Housing	Equivalent of Tyco AMP receptacle Housing, plug housing
Crimp terminal	43030 Male and female, tin plated
Header/ wafer	Tyco 1586041-2, AMPHENOL: MF42-RD-02 Thru hole/ DIP; Top, side entry
Pitch Centerline	4.2mm
Circuits/ poles/ pins	2~24
Number of Rows	Single or Dual
Current rating	5A AC, DC
Voltage rating	250V, AC, DC
Wire range	AWG20~24

Descriptions:

Alternate TE AMP VAL-U-LOK R/ A HDR V2 - 1586041-2 to Tyco 1-1586041-2

The VAL-U-LOK connector system offers wire-to-wire and wire-to-board connections with contacts on a 4.20 mm (.165 in) centerline and current ratings up to 9 Amps max. per line. Plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and header assemblies offer wire-to-board connections in vertical and right angle configurations. VAL-U-LOK connector system configurations are available in dual row 2-24 position and 2-12 position single row.

They can be replacing AMP, TYCO, Molex, JST, JAE, Civilux, Samtech ect famous parts.

Application:

Consumer
White goods

Industrial

Automation equipment
Industrial networks

Networking

Rack-mount server
Router/ Switch

OEM wire harness, cable assemble orders are welcomed!
