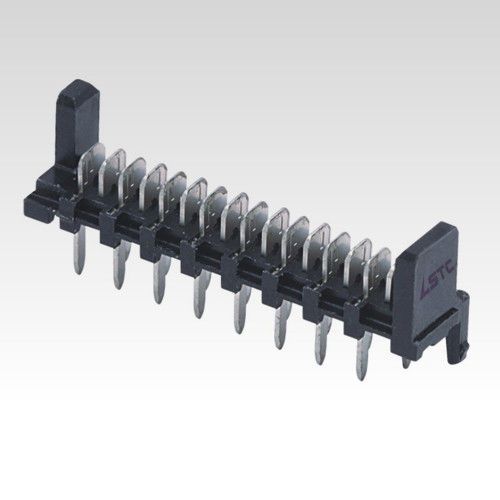

Alternative Header Connector For Car LCD Panel With PCB Pegs

0.1 USD

Detailed Product Description

Color:	Black	Metal Meterial:	Phosphor Bronze
Meterial Resin:	Polyester	Termination:	Through Hole
PCB Retention:	Yes	Cable/ wire Type:	Ribbon Cable

Alternative Header Connector For Car LCD Panel With PCB Pegs

Quick Detail:

Name	OEM IDT Picoflex PF 50 Header	Application	Signal, wire to board
Connector	Molex IDT	Circuits/ poles/ positions/ pins	2~22
Pitch	1.27mm	Certificate	ROHS, UL, HF

Descriptions:

1) Alternate 90325 series Picoflex headers;

2) Save space;

Standard through-hole, vertical header suitable for wave soldering, available in palladium nickel with gold flash plating options.

Wire harnesses are produced on our fully automatic, high speed, discrete wire, IDC termination machines which assure superior quality and competitive prices.

They can be alternate Molex, JST, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.

Specifications:

Connector	Equivalent of Molex 90325-00 (04~22) PK-90325-002
Pitch Centerline	1.27mm, 2.0mm, 2.54mm
Circuits/ poles/ pins	4~22
Rows	Single or Dual
Termination interface styple	Through hole
PCB Retention	Yes
Orientation	Vertical

Application:

Automotive: Navigation Systems, Car audio, Air-Conditioning, Dashboard Applications, Car LCD panel, In Car Entertainment

Consumer: DVD Players/ Recorders, Security Systems, Vending Machines, Satellite Receivers, Smart Card Readers

Customized ribbon cable or sample are welcome!
