Shrouded Type Female Box Header PC Board Connector With Gold Plate Pin, SMT

0.1 USD

Detailed Product Description

Color:

Black

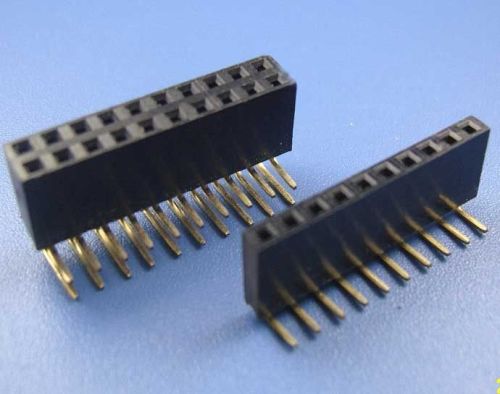

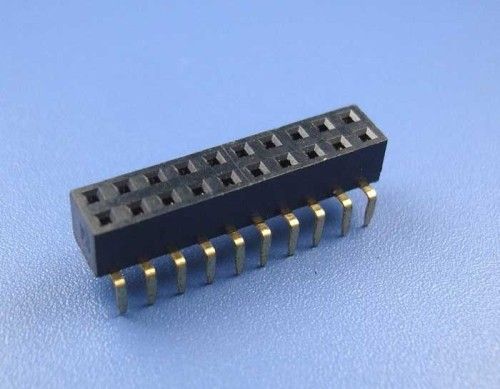

2.54MM Pitch Female Box Header Connector For PC Boards With Gold Plate Pin , SMT

Quick Detail:

Name	Box header connector	Application	wire-to-board, board-to-board and cable-to-board applications
Connector	Samtech replace female header	Circuits/ poles/ pins	2~100
Pitch	0.1' (2.54mm)	Certificate	ROHS, UL, HF

Descriptions:

1. Shrouded type, Secure insertion

2. Save cost, can also be used to directly connect PC boards
3. Available in two types, top entry type and side entry type

Specifications:

Pitch Centerline	.100' (2.54mm)
Gender	Female
Pin	Square, gold plate
Number of Rows	Dual/ double
Orientation	Vertical, Right angle
Termination	Through-hole, Surface mount (SMT)

Application:

Automotive: Audio, navigation, infotainment, Car LCD panel, Card audio, Data / Telemetry, GPS

Consumer: Copiers, Microwave oven, fax machines, printers, satellite radio, washing machine, White goods

Data/ Communications: Desktop computer and motherboard

If you can't find the part number here, please contact Eshine sales or send your drawing or part number.
