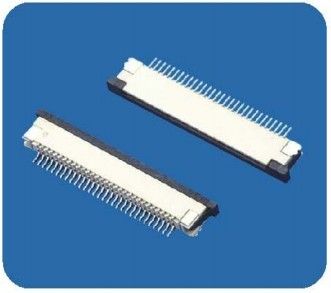

0.8MM Pitch electric FPC Connectors With Lock For PCB, Height 2.5MM
Detailed Product Description
| Color: | Beige, White |
0.8MM Pitch FPC Connectors With Lock For PCB , SMT, Right Angle , Height 2.5MM
Quick Detail:
Name | 0.8mm pitch FPC connector | Application | FFC cable, Power, PC board |
Contact | Upper , top | Circuits/ poles/ pins | 2~100 |
Lock | Pull type actuator | PCB mount | SMT |
Pitch/ space | 0.8mm | Certificate | ROHS, UL, HF |
Specifications:
Connector | Replace FCI FPC/ FFC connector |
PC board mounting direction | Side entry (right angle) , SMT |
Lock type | Pull type actuator |
Contact type | Upper/ top, Bottom/ lower can be selected |
Number of Rows | Single |
Current rating | 1A AC, DC |
Voltage rating | 30V, AC, DC |
Wire range | AWG30~32 |
Descriptions:
1. Ideal for tight-packaging connection
2. Various pitch options
3. Easy assembly
Eshine offers a wide variety of connectors for flat flexible cable (FFC) and flexible printed circuitry (FPC) . Included in this FFC/ FPC family are connectors with actuators on 0.30, 0.50, 0.8, 1.0mm and 1.25mm pitch. Actuators are pre-assembled covers that secure the connection between the FFC/ FPC and the connector terminals.
They can be replacing FCI, Molex, JST, TYCO, Hirose ect famous parts.
Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
Application:
Consumer: Digital camera, home security, game machines, Computers, Notebook PC
Medical: Patient monitor, surgical equipment etc. industrial.
If you can't find the part number here, please contact us or send your drawing or part number.
Tag :
flexible flat cable connector
,
