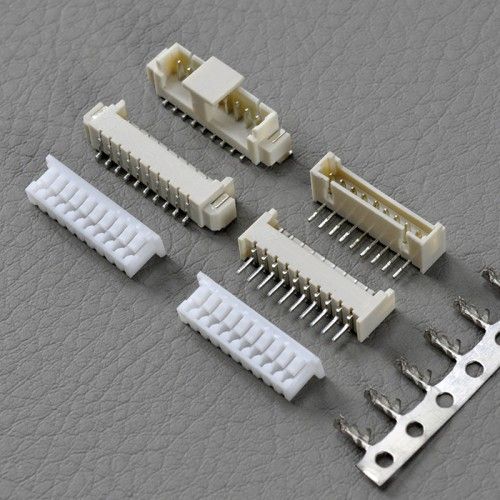

16 Pin PicoBlade Equal Header, Housing, Contact Wire To Board Connector For LED lamps

16 Pin PicoBlade Equal Header, Housing, Contact Wire To Board Connector For LED lamps

0.1 USD

add to cart

Detailed Product Description

Color: Beige, WhiteRow: Single
OEM Cable Assy: YesType: Disconnectable Type Crimp Style, Compact Type
PC Board Mounting Direction: SMT, DIP, Top Entry, Side Entry


PicoBlade Equal Header, Housing, Contact Wire To Board Connector For LED lamps

Quick Detail:

Name

Molex PicoBlade connectors

Application

Signal, Wire-to-wire, Wire–to-Board

Connector

Housing, contact, pin header

Circuits/ poles/ pins

2~16

Pitch

1.25mm

Certificate

ROHS, UL, HF

Specifications:

Crimp Housing

Alternative Molex picoblade Housing

Crimp terminal

Tin plate, 50079-0800

PCB Header/ wafer

SL, Thru/ DIP; Vertical, Horizontal

Mates with parts

53048, 53398, 5304753261609-4388-1-ND, 4-1734261-2

Pitch Centerline

1.25mm

Circuits/ poles/ pins

2~16

Number of Rows

Single

Current rating

1A AC, DC

Voltage rating

100V, AC, DC

Wire range

AWG28~32

Descriptions:

PicoBlade wire-to-wire and wire-to-board housing, terminal, wafer, 1.25mm pitch, single row, male & female, 2~16 circuits. It is for demand high-density harness applications.

They can be replacing Molex, Digi-Key, TE AMP, TYCO JST, JAE, , Hirose, Yeonho, Civilux, Samtech ect famous parts.

Usage Range:

Industrial: Led lamps, Robotics, process controls

Commercial Vehicle: Sound systems

Consumer: DVD players, set top box, Computer peripherals, modems, printers, scanner

Automotive: Car audio, alarm systems

Data/ communications: Disk drives

Medical: Patient monitor, measuring equipment, surgical systems, front panel displays, dental equipment and Networking field etc.

If you can't find the part number here, please contact us or send your drawing or part number.

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
