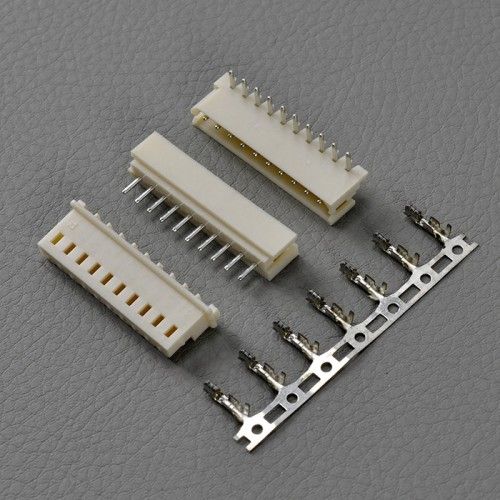

Automotive Wire To Board Connectors Molex 5264 SPOX PCB header

0.1 USD

Detailed Product Description

Name	Molex SPOX connector systerm	Application	Signal, Power Wire–to-Board
Connector	Housing, contact, pin header	Circuits/ poles/ pins	2~16
Pitch	2.5mm	Certificate	ROHS, UL, HF

Descriptions:

1) Voids, various platings and kinked tail options meets various design needs

2) Box-style terminal: multiple contact points and terminal protection

3) Friction lock secure mating retention

4) Polarzation keys ensures proper mating

They can be replacing Molex, Digi-Key, TE AMP, TYCO JST, HRS, Yeonho, Civilux, Samtech ect famous parts.

Specifications:

Crimp Housing	Alternative 50-37-5 (02~16) 3 SPOX crimp Housing, friction lock
Crimp terminal	08701039 SPOX Crimp Terminal
PCB Header/ wafer	0022035 (04~15) 55267- (02~15) A, SD-5267-NA vertical shrouded PCB header , 22-05-7 (02~15) 55268- (02~20) A, SD-5268-NA right angle shrouded PCB header
Pitch Centerline	1.5mm
Circuits/ poles/ pins	2~16
Number of Rows	Single
Current rating	3.0A AC, DC
Voltage rating	250V, AC, DC
Wire range	AWG24~26

Applications:

Consumer

Fitness Equipment

Fax machines

Copier

Automotive

Car audio

Gaming Machines

Printers

Security System.

Set-top box.

Video / DVD products

Data/ Communications

Copiers

Industrial

Vending Machines

Medical

Lab equipment

Medical monitoring

Networking

Router/ Switch

Telecommunications

Hubs

Routers

Servers

SwitchesIf you can't find the part number here, please contact us or send your drawing or part number.

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
