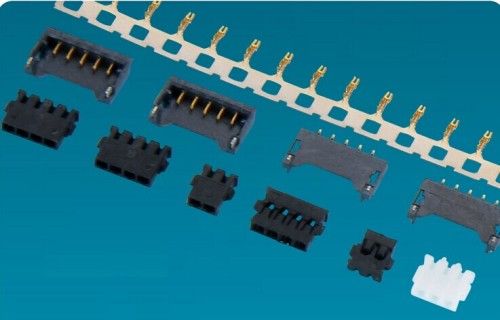

Molex Pico EZmate Wire To Board Crimp Connectors For Track Lighting

0.1 USD

Detailed Product Description

Quick Detail:

Name	Molex PicoEZmate connectors	Application	Signal, Wire-to-wire, Wire–to-Board
Connector	Housing, contact, pin header	Circuits/ poles/ pins	2~5
Pitch	1.2mm	Certificate	ROHS, UL, HF

Descriptions:

Ultra low-profile , space saving;

Easy application in tight spaces;

Open space on header accommodates pick and place;

Gold plating secure contat for multiple cysles;

Polarizing key prevents mismating

They can be replacing Molex, Digi-Key, TE AMP, TYCO JST, JAE, , Hirose, Yeonho, Civilux, Samtech ect famous parts.

Specifications:

Crimp Housing	Alternative Molex 78172-000 (2-5) PicoEZmate wire-to-board Housing
Crimp terminal	Tin plate, 78172-0410
PCB Header/ wafer	PicoEZmate 78171000 (2~5)
Pitch Centerline	1.2mm
Circuits/ poles/ pins	2~5
Number of Rows	Single
Current rating	1A AC, DC
Voltage rating	100V, AC, DC
Wire range	AWG28~32

Usage range:

Smartphones and mobile devices: mobile phone.

Solid state lighting: Linear lights: Track lighting, Led lamps

Commercial Vehicle: Sound systems

Consumer: DVD players, Notebook PC, set top box, Computer peripherals, modems, printers, scanner

Automotive: GPS, Car audio, alarm systems

Data/ communications: Disk drives

Medical: Patient monitor, measuring equipment, surgical systems, front panel displays, dental equipment and Networking field etc.

If you can't find the part number here, please contact us or send your drawing or part number.

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
