CN Mate Wire To Board Header For Inverter, molex mini-Fit connector
Detailed Product Description
| Color: | Beige, White | Row: | Single |
| OEM Cable Assy: | Yes | Type: | Ultra Low |
| PC Board Mounting Direction: | SMT, Right Angle, Side Entry | Material: | Nylon 46, Phosphor Bronze |

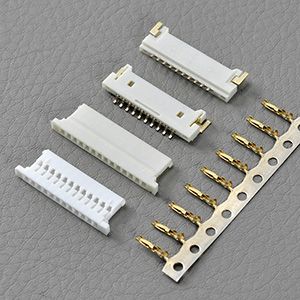

CN Mate Wire To Board Header For Inverter , molex mini-Fit connector
Quick Detail:
Name | Molex PanelMate connector systerm | Application | Signal, Wire-to-wire, Wire–to-Board |
Connector | Housing, contact, pin header | Circuits/ poles/ pins | 2~16 |
Pitch | 1.25mm | Certificate | ROHS, UL, HF |
Descriptions:
1) Ultra lower profile, offers the lowest profile of any fully-shrouded anti-flux wicking design, protects contacts during soldering and cleaning processes, wire to board, it is for demand slimmer equipment applications.
2) Spring box contact protection, durability and good electrical contact
They can be replacing Molex, Digi-Key, TE AMP, TYCO JST, JAE, , Hirose, Yeonho, Civilux, Samtech ect famous parts.
Specifications:
Crimp Housing | Alternative 51146- (02~30) 00 Molex PanelMate receptacle Housing |
Crimp terminal | Gold plate, 50641, 50753 |
PCB Header/ wafer | 53780- (02~30) 70, Horizontal, Right angle |
Pitch Centerline | 1.25mm |
Circuits/ poles/ pins | 2~30 |
Number of Rows | Single |
Current rating | 1A AC, DC |
Voltage rating | 100V, AC, DC |
Wire range | AWG28~32 |
Usage range:
Data/ communications: Inverter , Disk drives
SmartPhones and mobile devices:
Mobile phone, portable gaming
Industrial: Led lamps, Robotics, process controls
Commercial Vehicle: Sound systems
Consumer: LCD, Notebook PC, TV panel, PDP, Point of sales terminals, set top boxes
Automotive: Car LCD panel, Car audio, alarm systems
Medical: Patient monitor, measuring equipment, surgical systems, front panel displays, dental equipment and Networking field etc.
If you can't find the part number here, please contact us or send your drawing or part number.
Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
OEM orders are welcomed!
Tag :
surface mount connector
,
