JST NH Wire To Board Connectors Double Sided Contact Locking Device

0.1 USD

Detailed Product Description

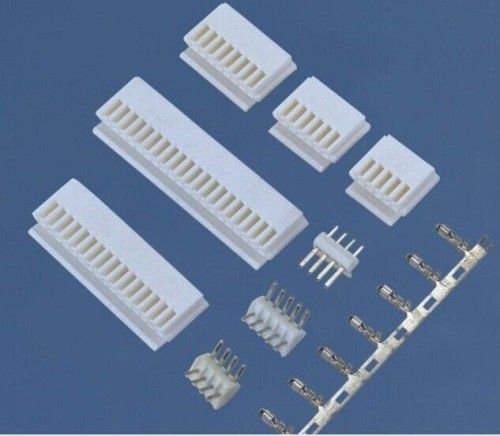

Quick Detail:

Name	JST NH 2.5mm connector	Application	Printed circuit boards, wire to boards
Connector	NH disconnectable connector	Circuits/ poles/ pins	2~25
Pitch	2.5mm	Certificate	ROHS, UL, HF

Descriptions:

Thin, low-profile can meet the demand for high-density connection of internal wire to PCB.

With locking device;

Molded-in header with wide and sturdy posts

Double-side contact;

Top, side and bottom entry allows the wire to be perpendicular or parallel to the PCB in any direction.

They can be equal JST, Molex, Digikey, CVILUX, JAE, JWT ect famous parts.

Specifications:

Housing	Equivalent of JST NH H (2~25) P-SHF-AA
Contact:	SHF-001T-0.8BS SHF-002T-0.8BS Tin plated, Reel package
Shrouded Header/ wafer	Top entry: B (2~25) P-SHF-1AA; Side entry: BS (2~25) P-SHF-1AA; Bottom entry: BE (2~25) P-SHF-1AA
Number of Rows	Single
Current rating	3A AC, DC
Voltage rating	250V, AC, DC
Wire range	AWG22

Application:

Robotics, PCBA, Signal-jumpers; high-power solutions, Computers, Notebook PC, LCD, Digital camera, PAD, Led lighting, Scanner, BT alarm button, taximeter, Printed circuit boards, wire to board system etc. industrial.

If you can't find the part number here, please contact us or send your drawing or part number.
