Replace JAE FIX LCD Interface Wire-To-Board Connector With High Speed Transmission

Replace JAE FIX LCD Interface Wire-To-Board Connector With High Speed Transmission

0.1 USD

add to cart

Detailed Product Description

Color: BlackRow: Single
OEM Cable Assy: YesType: With/ without Lock
PC Board Mounting Direction: SMT Side EntryPackage: Tube Packaging Or Reel

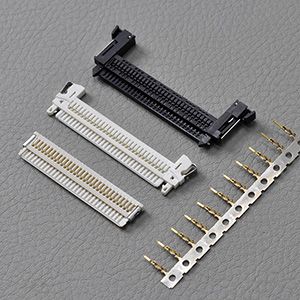

Replace JAE FIX LCD Interface Wire-To-Board Connector With High Speed Transmission

Quick Detail:

Name

JAE FIX PCB-Board-to-Wire connector

Application

Signal, Power Wire–to-Board

Connector

Socket, contact, pin header

Circuits/ poles/ pins

142030

Terminal Pitch

1.0mm

Certificate

ROHS, UL, HF

Specifications:

Crimping Housing

FI-XD7H

Crimp contact for socket

FI-XC3-1-15000 Tin-lead plated

Pin Header/ wafer

FI-XB**S-HF10, FI-XB**SR-HF11

Pitch Centerline

1.0mm

Circuits/ poles/ pins

2-30

Number of Rows

Single

Current rating

1A AC, DC

Voltage rating

100V, AC, DC

Wire range

AWG30~36

Descriptions:

1) Compatible with high-speed differential transmission and high-level impedance matching

2) Drastically improved grounding which is directly related to EMI characteristics.

3) 1mm contact pitch with impedance matching, 1.5mm connector height and 1mm height above the PCB thanks to bottom type structure.

4) Compatible with FPC and cable by common use of board header.

Enables stable grounding to the PCB thanks to FPC relay used in other FI Series connectors

They can be replacing JAE (Japan Aviation Electronics) , HRS, Molex, Digi-Key, TE AMP, Yeonho, Civilux, Samtech ect famous parts.

Application:

LCD, Miniature type business equipment, Mobile terminal, Note PC, and other various consumer equipment, video camera

If you can't find the part number here, please contact us or send your drawing or part number.

OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
