20Poles Replace JAE FI-S Board To Cable Connector 0.049' Pitch UL

20Poles Replace JAE FI-S Board To Cable Connector 0.049' Pitch UL

0.1 USD

add to cart

Detailed Product Description

Color: BlackLock: Friction Lock
OEM Cable Assy: YesType: Enables Secure Connections
Connection: SMT MountingPackage: Tube Packaging Or Reel

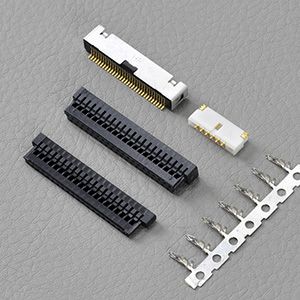

20Poles Replace JAE FI-S Board To Cable Connector 0.049' Pitch UL

Quick Detail:

Name

JAE FI-S board to cable connector

Application

Board to cable , LVDS cable

Connector

Socket, contact, pin header

Circuits/ poles/ pins

142030

Terminal Pitch

0.049' , 1.25mm

Certificate

ROHS, UL, HF

Specifications:

Socket Housing

FI-S***S (Cable side plug, discrete wire unshielded)

Socket contact

FI-C3-A1-15000

, Tin-lead plated

Pin Header/ wafer

FI-S***P-HFE (Board side receptacle)

Pitch Centerline

1.25mm

Circuits/ poles/ pins

2-30

Number of Rows

Single

Current rating

1A AC, DC

Voltage rating

100V, AC, DC

Wire range

AWG30~36

Descriptions:

• Flex connector available

• Socket housing available with or without a shield

• Dependable pin-type double contacts

(post and box)

• Pin header available on embossed tape for

automatic SMT mounting

• Friction lock housing enables secure connections

They can be alternative JAE (Japan Aviation Electronics) , HRS, Yeonho, TE Connectivity, AMP, Civilux, Samtech ect famous parts.

Application:

They are used in Pos machine Panel, notebook PCs Panel, mobile phones, VCR's, and other consumer

applications, where reduced space is a requirement etc.

Along with digitalization trends, cases where LVDS (Low Voltage Differential Signaling)

is used for internal wiring in consumer products such as TVs are increasing. Eshine has developed a connector that combines both electrical considerations for LVDS

transmission and mechanical considerations for TV interiors.

OEM cable wire hanresses assemblies or LVDS cablesample orders are welcomed!
