Security System 18Pins Wire To Board Connectors Replace Molex
Detailed Product Description
| Color: | Beige, orange | Design: | Long And Short Latch |
| OEM Cable Assy: | Yes | Type: | Low Profile Size, Space Savings |
| Pins: | Cat Ear Type | Package: | Tube Packaging Or Reel |

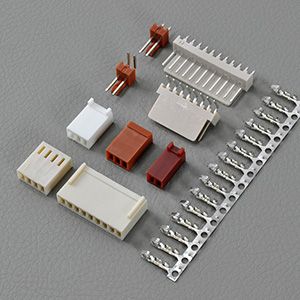

Security System 18Pins Wire To Board Connectors Replace Molex
Quick Detail:
Name | Molex KK254 connector systerm | Application | Signal, Power Wire–to-Board |
Connector | Housing, contact, pin header | Circuits/ poles/ pins | 2~22 |
Pitch | 2.54mm (1') | Certificate | ROHS, UL, HF |
Specifications:
Crimp Housings | Equal KK254 Crimp Housing 0022012 (03~28) 1; optional ramp and polarizing ribs, short type 022012 (02~22) 5 |
Crimp terminals | 0008500030 254 Cat Ear Crimp Terminal 4809, 22-30 AWG, Hot Tin Dip, 2.20mm Insulation Crimp, Reel |
PCB Header/ wafer | Digi-Key: 5p: WM4203-ND, molex 0022232 (02~22) 1 KK 100 header assembly friction lock solid body SD-6373-001; KK254 Solid Header, Right Angle, with Friction Lock: 22-05-3 (02~28) 1 |
Pitch Centerline | 2.5mm (1') |
Circuits/ poles/ pins | 2~22 |
Number of Rows | Single |
Current rating | 4.0A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG22~30 |
Descriptions:
1) Friction lock headers and receptacles ensure secure mating and prevents accidental disengagement
2) Dual-cantileveer terminal enable reliable electrical contat and performance with low insertion force
3) Polarizing header backwalls, polarizing ribs on receptacles and polarizing pegs prevent accidental mis-mating during assembly
They can be replace Molex, JAE (Japan Aviation Electronics) , TE Connectivity, AMP, Civilux, Samtech ect famous parts.
Application:
Fax machines
Copier
Automotive
Car audio
Gaming Machines
Printers
Security System.
Set-top box.
Video / DVD products
Along with digitalization trends, cases where wire harness assembles
is used for internal wiring in consumer products such as security system are increasing. Eshine has developed a connector that combines both electrical considerations for high
transmission and mechanical considerations for panel interiors.
OEM cable wire hanresses assemblies or LVDS cablesample orders are welcomed!
Tag :
surface mount connector
,
