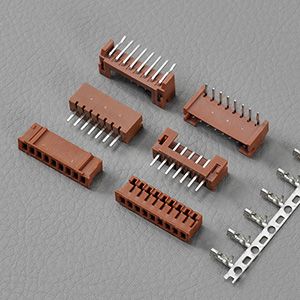

JAE IL - S Vending Machine Wire To Board Connectors Housing Header Terminal 10P
Detailed Product Description
| Color: | Orange | Design: | Box |
| OEM Cable Assy: | Yes | Type: | Semi-automatic |
| PC Board Mounting Direction: | Through Hole Right Angle | Package: | Tube Packaging Or Reel |
JAE IL - S Vending Machine Wire To Board Connectors Housing Header Terminal 10P
Quick Detail:
Name | JAE IL-S PCB-to-cable crimp type connector | Application | Signal, Power Wire–to-Board |
Connector | Socket, contact, pin header | Circuits/ poles/ pins | 2~15 |
Contact spacing | 0.079', 2.0mm | Certificate | ROHS, UL, HF |
Specifications:
Socket Housing | IL-S- (2-15) S-S2CS-S socket housing |
Socket contact | IL-S-C2-S-10000 socket contact Tin-lead plated |
Pin Header/ wafer | S/ A: IL-S- (2~15) P-S2T2-EF; R/ A: IL-S- (2~15) P-S2L2-EF |
Pitch Centerline | 2.0mm (.079') |
Circuits/ poles/ pins | 2-15 |
Number of Rows | Single |
Current rating | 1A AC, DC |
Voltage rating | 300V, AC, DC |
Wire range | AWG24~28 |
Descriptions:
Box type pin header prevents mismating
Highly reliable socket contact
Design prevents flux wicking
Both semi-automatic crimp termination machine and crimping tool are available
Pin headers are available in straight and right angle, bottom through hole types
They can be replacing JAE (Japan Aviation Electronics) , HRS, Molex, Digi-Key, TE AMP, TYCO JST, Yeonho, Civilux, Samtech ect famous parts.
Application:
Ideal for VTR, television, audio and other consumer electronic products. Additional applications include OA equipment, computer, measuring equipment, telecommunications and vending machine.
If you can't find the part number here, please contact us or send your drawing or part number.
OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
