RE RF Wire To Board Crimp Style Connector For OA Equipments Internal Connection
Detailed Product Description
| Color: | Black | Gender: | Male And Female |
| Rows: | Single Or Double | Type: | Shrouded Type; Secure Insertion |
| Pins: | AU Ot SN Plated | Termination: | Through-hole |

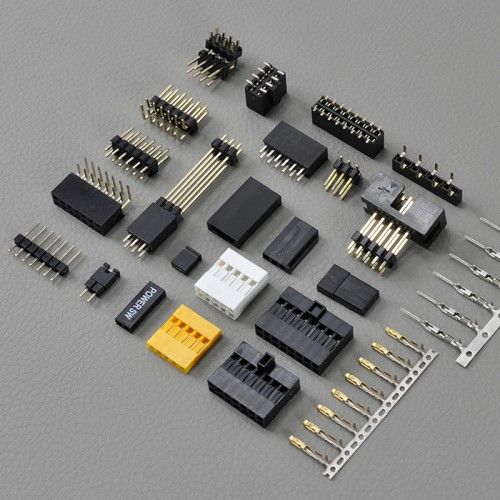

RE RF Wire To Board Crimp Style Connector For OA Equipments Internal Connection
Quick Detail:
Housing | RE – (02~09) RF- (06~028) | Header (Top entry type) | RF-H (*) 2TD-1130, RE-H (*) 2TD-1190 |
Contact | RF-SC2210, RF-SC2290 | Header (Side entry type) | RE-H (*) 2SD-1110, RE-H (*) 2SD-1190 RF-H (*) 2SD-1110, RF-H (*) 2SD-1190 |
Pitch | 0.1' (2.54mm) | Certificate | ROHS, UL, HF |
Descriptions:
Double-leaf spring contact withstands the stresses caused by repeated mating and unmating. Shrouded type; secure insertion.
Double-leat spring contact withstands the stresses caused by repeated mating and unmating and ensures a stable high-pressure connection. The contacts and headers are selectively gold-plated to reduce costs. Depending on the application, fully tin-plated contacts and headers are available to further reduce costs.
Space-saving, high-density design:
RE connector and header require less mounting space and facilitate high-density circuit design.
It can be cut to any length to provide a header with any number of circuits. Notches are provided on the insulator that allow it to be cut to any length without using special tools.
Easy contact insertion:
A slight force is all that is needed to insert the contacts into the housing, since the housing have lances. The position of the contact in the housing can be visually checked. This vacilitates insertin of the contacts in the housing.
The RE RFconnector was developed as highly reliable, low-cost, crimp style connector for connecting wires to printed circuit boards.
They can be replacing JST, DP, Molex, JST, Civilux, ect famous parts.
Specifications:
Pitch Centerline | .100' (2.54mm) |
Gender | male & female |
Pin | Square, gold plate |
Number of Rows | Dual/ double |
Orientation | Vertical, Right angle |
Termination | Through-hole |
Current rating | 2A AC, DC |
Voltage rating | 250V AC, DC |
Applicable wire | AWG #30 to #24 |
Application:
Ideal for completing the internal connections of OA Equipments, office automation equipment, such as office computers, personal computers, and their peripheral devices.
Automotive: Audio, Card audio, navigation, infotainment: Car LCD panel, Data / Telemetry, GPS
Consumer: satellite radio, washing machine, Copiers, Microwave oven, fax machines, printers, White goods.
Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
OEM orders are welcomed!
