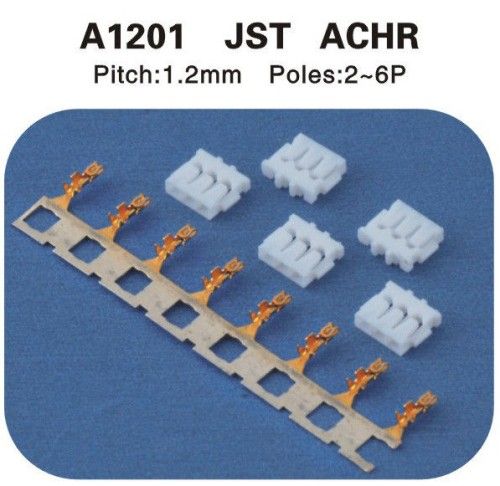

ACH Crimp Type Connectors Alternate JST Wire To Board For LED lamp

ACH Crimp Type Connectors Alternate JST Wire To Board For LED lamp

0.1 USD

add to cart

Detailed Product Description


ACH Crimp Type Connectors Alternate JST Wire To Board For LED lamp

Quick Detail:

Name

JST ACH 1.2mm connector

Application

DC power supply, LED lamp

Connector

ACH connector

Circuits/ poles/ pins

1~5

Pitch

1.2mm

Certificate

ROHS, UL, HF

Descriptions:

Compact design; low profile type

Top entry, side feed

Corresponding to sucking nozzle of pick and place machine

They can be alternative JST, Molex, Digi-key, CVILUX, JAE, JWT ect famous parts.

Specifications:

Housing

Replacement of JST ACHR (01~15) V-A-S

Contact:

SACH-003G-P0.2 Tin plated, Reel package

Shrouded Header/ wafer

Top entry: BM (01~05) B-ACHSS-A-GAN-ETF

Number of Rows

Single

Current rating

1.5~2A AC, DC

Voltage rating

50V, AC, DC

Wire range

AWG28~32

Application:

LED Lamp, Led Battery, Motor controller, Robotics, PCBA, Signal-jumpers; Printed circuit boards, wire to board system etc. industrial.

If you can't find the part number here, please contact us or send your drawing or part number.
