Box Shaped Shrouded Header Wire To Board Connectors Alternate JST XH

0.1 USD

Detailed Product Description

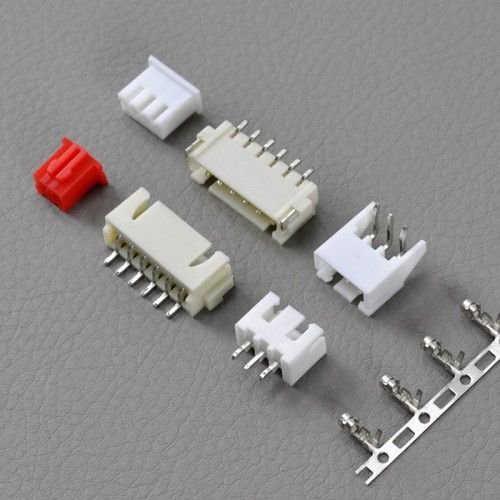

Box Shaped Shrouded Header Wire To Board Connectors Alternate JST XH

Quick Detail:

Name	JST XH 2.5mm connector	Application	Printed circuit boards, wire to boards
Connector	XH disconnectable connector	Circuits/ poles/ pins	2~20
Pitch	2.5mm	Certificate	ROHS, UL, HF

Descriptions:

High reliability , small, with mount height of 9.8mm;

Original folded beam contact;

Box shaped shrouded header;

Header with a boss and interchangeability;

Top, side and bottom entry allows the wire to be perpendicular or parallel to the PCB in any direction.

Replace JST XH serial connector, Molex, Digikey, CVILUX, JAE, JWT ect famous parts.

Specifications:

Housing	Equivalent of JST XHP- (1~20)
Contact:	SXH-002T-P0.5 Tin plated, Reel package
Shrouded Header/ wafer	Top entry: B (2~20) B-XH-A; S (2~16) B-XH-Aside entry: S (2~20) B-XH-A-1, S (346) B-XH-SM4-TB
Number of Rows	Single
Current rating	3A AC, DC
Voltage rating	250V, AC, DC
Wire range	AWG22
Temperature range	-25 ℃ to +85 ℃

Application:

Led lamp cable, LED light, Fax machine, Scanner, BT alarm button, taximeter, Fingerprint machine ect.

If you can't find the part number here, please contact us or send your drawing or part number.

OEM cable harness assemblies are welcome!
