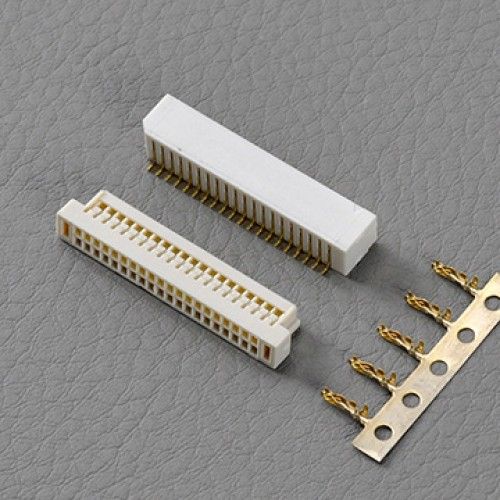

JST SHD Wire To Board LVDS Connectors Dual Rows 1.0MM Pitch 40 Poles UL Rohs

JST SHD Wire To Board LVDS Connectors Dual Rows 1.0MM Pitch 40 Poles UL Rohs

0.1 USD

add to cart

Detailed Product Description

Color: BeigeRow: Single
OEM Cable Assy: YesWays: 20304050
PC Board Mounting Direction: SMT, Side EntryPackage: Tube Packaging Or Reel

JST SHD Wire To Board LVDS Connectors Dual Rows 1.0MM Pitch 40 Poles UL Rohs

Quick Detail:

Name

40Pins LVDS connector

Application

PCB, LVDs cable

Connector

Housing, terminal, wafer

Circuits/ poles/ pins

20/30/40/50

Terminal Pitch

1.0mm

Certificate

ROHS, UL, HF

Specifications:

Crimping Socket

Alternative JST SHDR (20/30/40/50) V-S-B

Crimp contact for socket

SSH-003GA-P0.2 Tin plated, Reel package

Pin Header/ wafer

Top entry: BM (20~50) B-SRDS-G-TF; Side entry: SM (20~50) B-SRDS-G-TF

Pitch Centerline

1.0mm

Circuits/ poles/ pins

20304050

Number of Rows

Single

Current rating

1A AC, DC

Voltage rating

100V, AC, DC

Wire range

AWG28~32

Descriptions:

Thin, low-profile can meet the demand for high-density connection of internal wire to PCB.

Compact, low profiles design; SMT

Anti- misinsertion feature

Gold-plating

They can be equal JST, Molex, Digikey, CVILUX, JAE, JWT ect famous parts.

Application:

Note PC, Mobile Terminal Small business equipment, Computer main board, Monitor, LCD, Video camera etc.

If you can't find the part number here, please contact us or send your drawing or part number.

OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
