Detailed Product Description

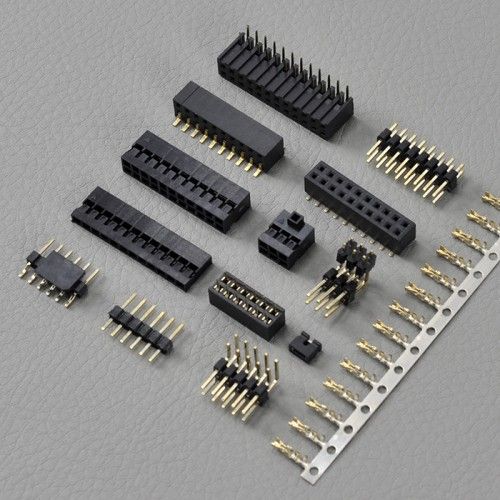

Male Pin Socket Wire To Board Crimp Style Connector Apply To Game Machine Copiers

Quick Detail:

Descriptions:

Space-saving, high-density design:

RE connector and header require less mounting space and facilitate high-density circuit design.

It can be cut to any length to provide a header with any number of circuits. Notches are provided on the insulator that allow it to be cut to any length without using special tools.

Easy contact insertion.

Double-leaf spring contact withstands the stresses caused by repeated mating and unmating. Shrouded type; secure insertion.

Double-leat spring contact withstands the stresses caused by repeated mating and unmating and ensures a stable high-pressure connection. The contacts and headers are selectively gold-plated to reduce costs. Depending on the application, fully tin-plated contacts and headers are available to further reduce costs.

The RF RE connector was developed as highly reliable, low-cost, crimp style connector for connecting wires to printed circuit boards.

They can be replacing Dounp, Samtech Molex, JST, Civilux, ect famous parts.

Specifications:

Application:

Ideal for completing the internal connections of OA Equipments, office automation equipment, such as office computers, personal computers, and their peripheral devices.

Consumer: Game Machine, satellite radio, washing machine, Copiers, Microwave oven, fax machines, printers, White goods.

Consume: Led light, Led lamps, LCD, Computer, motherboard

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
