OEM LCD Backlight Wire To Board Connectors Low Profile Alternte JST

0.1 USD

Detailed Product Description

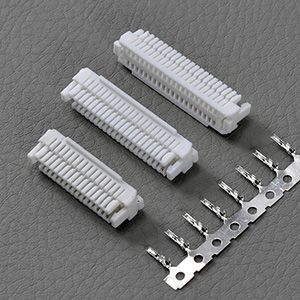

OEM LCD Backlight Wire To Board Connectors Low Profile Alternte JST

Quick Detail:

Name	SHJ connector	Application	LCD back light, PCB
Connector	Plug, recetable, terminal, wafer	Circuits/ poles/ pins	2~16
Terminal Pitch	1.0mm, 0.039 inch	Certificate	ROHS, UL, HF

Specifications:

Crimping Socket	Alternative JST SHJR-06V-S
Crimp contact for socket	SSHJ-003T-P0.2 Tin plated, Reel package
Pin Header/ wafer	SM06B-SHJH-TF (HF)
Pitch Centerline	1.0mm
Circuits/ poles/ pins	2~16
Number of Rows	Single
Current rating	1A AC, DC
Voltage rating	100V, AC, DC
Wire range	AWG28~32

Descriptions:

Wire to board crimp style, ideal for LCD back light lamps

With secure locking device.

Low profile connector suitable for the backlight connection of the LED liquid crystal display.

It has the secure locking structure to prevent to come off the housing when handling the wire.

They can be equal JST, Molex, Digikey, CVILUX, JAE, JWT ect famous parts.

Application:

LCD back light lamps, LED light, Led lamps, Led strip, Computer main board, Monitor, LCD, Video camera etc.

If you can't find the part number here, please contact us or send your drawing or part number.

OEM LVDS cable or Wire hanresses assemblies sample orders are welcomed!
