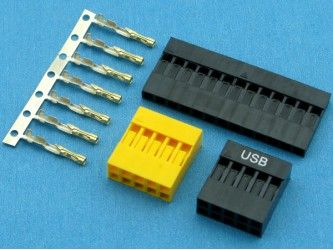

UL Dupont 2.54 Wire To Board Crimp Style Connector For Mainframes Black Yellow ISO

0.1 USD

Detailed Product Description

Color:	Black, Yellow	Gender:	Male And Female
Rows:	Single Or Double	Type:	Shrouded Type; Secure Insertion
Pins:	AU Ot SN Plated	Termination:	Through-hole

UL Dupont 2.54 Wire To Board Crimp Style Connector For Mainframes Black Yellow ISO

Quick Detail:

Housing

RE – (02~09)

RF- (06~028)

Header (Top entry type)

RF-H (*) 2TD-1130, RE-H (*) 2TD-1190

Contact

RF-SC2210, RF-SC2290

Header (Side entry type)

RE-H (*) 2SD-1110, RE-H (*) 2SD-1190

RF-H (*) 2SD-1110, RF-H (*) 2SD-1190

Pitch

0.1' (2.54mm)

Certificate

ROHS, UL, HF

Descriptions:

Double-leaf spring contact withstands the stresses caused by repeated mating and unmating. Shrouded type; secure insertion.

RE connector and header require less mounting space and facilitate high-density circuit design.

Double-leat spring contact withstands the stresses caused by repeated mating and unmating and ensures a stable high-pressure connection. The contacts and headers are selectively gold-plated to reduce costs. Depending on the application, fully tin-plated contacts and headers are available to further reduce costs.

Space-saving, high-density design:

They can be replacing DP, JST, Molex, JST, Civilux, ect famous parts.

Specifications:

Pitch Centerline	.100' (2.54mm)
Gender	male & female
Pin	Square, gold plate
Number of Rows	Dual/ double
Orientation	Vertical, Right angle
Termination	Through-hole
Current rating	2A AC, DC
Voltage rating	250V AC, DC
Applicable wire	AWG #30 to #24

Application:

Medical

Blood warming bags

Heart monitors

Patient Monitor

Respirators

Automotive

Control modules

Interior lighting

Stereos

Window defrosters

Industrial

Automation equipment

Robotics

OEM cable assemble, wire harness are welcomed!
