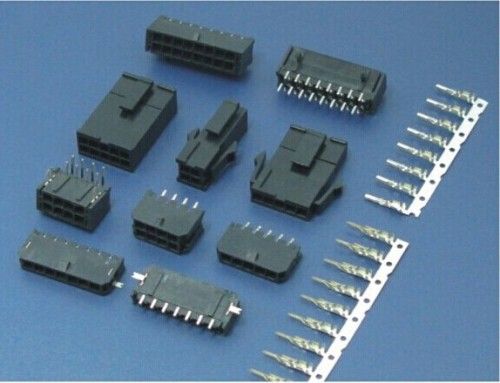

Alternate AMP 794616-8 Wire To Board Rectangular Connectors 0.118 Inch
Detailed Product Description
| Mating Retention Type: | Locking Tab | Mating Alignment Type: | Polarization |
| Mounting Ears: | With Or Without | Mount: | 90180 |
| Centerline: | 3 mm [ .118 in ] | Finished: | Tin, Gold |
Alternate AMP 794616-8 Wire To Board Rectangular Connectors 0.118 Inch
Quick Detail:
Name | Molex Micro-fit connector | Application | Power, Wire-to-Board, Wire-to-Wire, PCB |
Connector | Receptacle Terminal Wafer | Circuits/ poles/ pins | 2~24 |
Pitch | 3 mm [ .118 in ] | Certificate | ROHS, UL, HF |
Specifications:
Housing | Equivalent of Alternate AMP 794616-4794617-8 FREE HANG DBL ROW HSG , Molex 43030 (02~24) 01 |
Crimp terminal | TYCO 1-794608-0.43030 PIN CONT 20-24 TIN PLATE STRIP |
Header/ wafer | 4304543650 SMT, Thru/ DIP; Straight angle/ Right angle |
Pitch Centerline | 3.0mm, 0.118' |
Circuits/ poles/ pins | 2~24 |
Number of Rows | Single or Dual |
Current rating | 5A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG20~24 |
Descriptions:
1. Contact Type Pin
2. Contact Mating Area Plating Material Tin
3. Operating Voltage 250 VAC [ 250 VDC ]
4. Contact Retention With
5. Contact Retention Type Locking Lance
6. Mating Alignment With
7. Mating Alignment Type Polarization
8. Mating Retention With
9. Mating Retention Type Locking Tab
Application:
Aerospace and Defense:
Military Commercial Off-the-Shelf (COTS)
Solar power
Consumer:
Gaming Machines
Scanner
Vending Machines
Washing machine
White goods
Eshine can refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
OEM Wire harnesses are produced on our fully automatic, high speed, discrete wire, IDC termination machines which assure superior quality and competitive prices.
