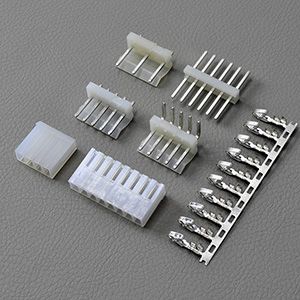

09503081 KK Control Modules Wire To Board Connectors With Friction Ramp

09503081 KK Control Modules Wire To Board Connectors With Friction Ramp

0.1 USD

add to cart

Detailed Product Description

Header: Friction LockMating Alignment Type: Polarization
Mounting Ears: With Or WithoutMount: 90180
Centerline: 3 . 96mmFinished: Tin Sn

09503081 KK Control Modules Wire To Board Connectors With Friction Ramp

Quick Detail:

Name

Molex KK2139 2478 2578 Interconnect System

Application

Signal, Power Wire–to-Board

Connector

Housing, contact, pin header

Circuits/ poles/ pins

2~24

Pitch

3.96mm

Certificate

ROHS, UL, HF

Specifications:

Crimp Housings

Equal KK254 Crimp Housing 09-50-3 (02~23) 1

Crimp terminals

25782478 Crimp, Reel

PCB Header/ wafer

26-60-4 (02~18) 0 Vertical Friction Lock

Pitch Centerline

3.96mm

Circuits/ poles/ pins

2~24

Number of Rows

Single

Current rating

4.0A AC, DC

Voltage rating

250V, AC, DC

Wire range

AWG22~24

Descriptions:

1) Optional Trifurcon, three point contact, dual cantilever terminal

Ideal for high-vibration environments with superior electrical reliability

2) Friction locking headers and receptacles

Ensure secure mating and prevent accidental disengagement

3) PCB retention pegs on headers

Ensure headers maintain position during solder processing and proper alignment to PCB

Application:

Automotive

Control modules

Window defrosters

Interior lighting

Stereos

Industrial

Automation equipment

Robotics

Medical

Blood warming bags

Heart monitors

Respirators

Eshine can refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

Custom wire harness assemble.
