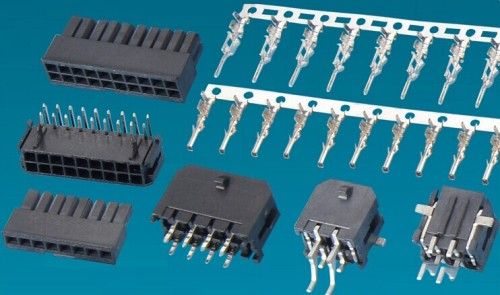

Alternate 3.0 4P 8P 24P Molex Micro-fit Connector Receptacle Terminal Wafer
Detailed Product Description
| Color: | Black | Rows: | 1 Or 2 |
| Mounting Ears: | With Or Without | Mount: | 90180 |
| Pitch: | 3.0mm | Finished: | Tin, Gold |
Alternate 3.0 4P 8P 24P Molex Micro-fit Connector Receptacle Terminal Wafer
Quick Detail:
Name | Molex Micro-fit connector | Application | Power, Wire-to-Board, Wire-to-Wire, PCB |
Connector | Receptacle Terminal Wafer | Circuits/ poles/ pins | 2~24 |
Pitch | 3.0mm | Certificate | ROHS, UL, HF |
Specifications:
Housing | Equivalent of Molex Micro-Fit Receptacle Terminal Wafer |
Crimp terminal | 43030 Male and female, tin plated |
Header/ wafer | 4304543650 SMT, Thru/ DIP; Straight angle/ Right angle |
Pitch Centerline | 3.0mm |
Circuits/ poles/ pins | 2~24 |
Number of Rows | Single or Dual |
Current rating | 5A AC, DC |
Voltage rating | 250V, AC, DC |
Wire range | AWG20~24 |
Descriptions:
1. High-density, low-power connector system
2. Wire-to-wire and wire-to-board can be selected
3. Configurations with SMT and through-hole options.
4. Equal Molex, Tyco, TE, AMP JST ect famous parts.
Application:
Aerospace and Defense:
Military Commercial Off-the-Shelf (COTS)
Alternative Energy Source
Consumer:
Freezers
Gaming Machines
Refrigerator
Scanner
Vending Machines
Washing machine
White goods
Eshine can refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/ Tin plate:
Semi Strip/ Tin plate:
OEM Wire harnesses are produced on our fully automatic, high speed, discrete wire, IDC termination machines which assure superior quality and competitive prices.
